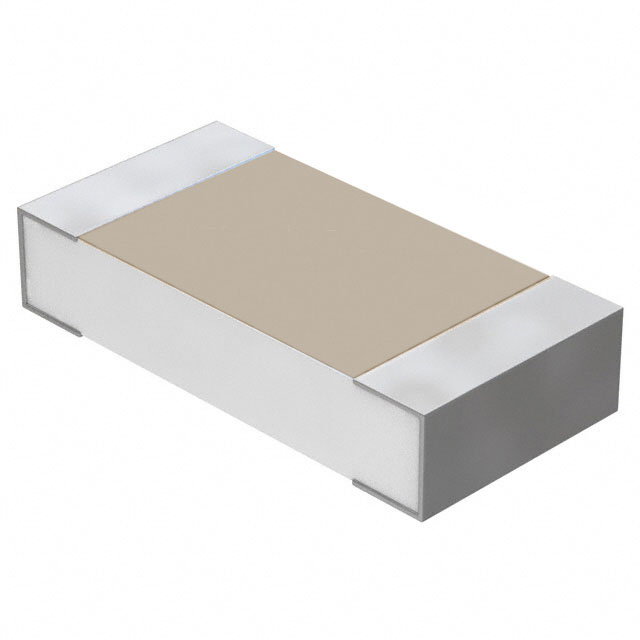

Y163020K0000T9R
ObsoleteVPG Foil Resistors
RES, 20K, 0.01%, 0.25W, 1206, METAL FOIL
Y163020K0000T9R
ObsoleteVPG Foil Resistors
RES, 20K, 0.01%, 0.25W, 1206, METAL FOIL
Description
General part information
Y163020K0000T9R
20 kOhms ±0.01% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Moisture Resistant, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y163020K0000T9R |
|---|---|
| Composition | Metal Foil |
| Features | Moisture Resistant, Non-Inductive, Anti-Sulfur |
| Height - Seated (Max) | 0.025 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 20 kOhm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.062 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 0.01 % |
