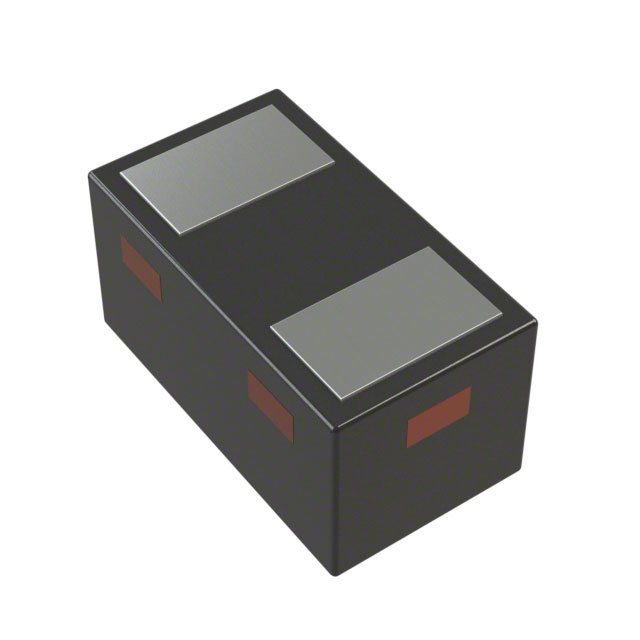

CDBZC0130L-HF

Active

Comchip Technology

DIODE SCHOTTKY 30V 100MA 0201

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 30V 100MA 0201

Technical Specifications

Parameters and characteristics for this part

Specification	CDBZC0130L-HF

Current - Average Rectified (Io)	100 mA
Current - Reverse Leakage @ Vr	7 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	0603 Metric
Package / Case	0201
Qualification	AEC-Q101
Speed	Any Speed
Speed	200 mA
Supplier Device Package	DFN0603, 0201
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	370 mV

DIODE SCHOTTKY 30V 100MA 0201

Part	Speed	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Grade	Supplier Device Package	Technology	Package / Case	Package / Case	Current - Reverse Leakage @ Vr	Qualification	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Comchip Technology CDBZC0130L-HF	Any Speed	200 mA	Surface Mount	370 mV	30 V	Automotive	0201, DFN0603	Schottky	0603 Metric	0201	7 µA	AEC-Q101	100 mA	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 100mA Surface Mount 0201/DFN0603
