EMSA090067-P5RP-SZ

EMSA090067-P5RP-SZ

Obsolete
CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 6W

Find alt
EMSA090067-P5RP-SZ

EMSA090067-P5RP-SZ

Obsolete
CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 6W

Find alt

Description

General part information

EMSA090067-P5RP-SZ

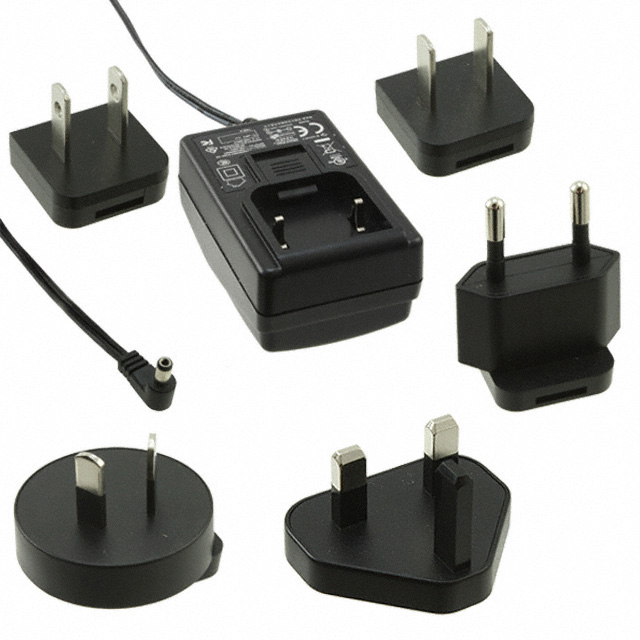

9V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input

Technical Specifications

Parameters and characteristics for this part

SpecificationEMSA090067-P5RP-SZ
ApplicationsITE (Commercial)
Approval AgencyPSE, GS, CCC, CE, cULus
Cord Length60.2 in
Current - Output (Max)670 mA
EfficiencyLevel V
FormWall Mount (Class II)
Input ConnectorMulti-Blade
Input TypeMulti-Blade (Included)
No Load Power Consumption (Max)300 mW
Operating Temperature (Max)40 °C
Operating Temperature (Min)0 °C
Output ConnectorBarrel Plug R/A
Output Connector I.D.2.1 mm
Output Connector Length9.5 mm
Output Connector O.D.5.5 mm
PolarizationPositive Center
Power (Watts)6 W
Region UtilizedInternational
Size / Dimension Height1.18 in
Size / Dimension Length2.52 in
Size / Dimension Width1.59 in
Voltage - Input (AC) Maximum264 V
Voltage - Input (AC) Minimum90 V
Voltage - Output9 V
