M1KXK-1636J
Active3M
IDC CABLE - MPK16K/MC16G/X
Deep-Dive with AI
Search across all available documentation for this part.
M1KXK-1636J
Active3M
IDC CABLE - MPK16K/MC16G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M1KXK-1636J | M1KXK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Plug to Cable | Plug to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length [x] | 3 ft | 3 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 mm |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 64 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M1KXK Series
IDC CABLE - MPK64K/MC64M/X
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Cable Termination | Length [x] | Length [x] | Pitch - Cable | Pitch - Cable | Shielding | Number of Rows | Pitch - Connector | Pitch - Connector | Number of Positions | Features | Connector Type | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | 0.76 Ám | 30 Áin | IDC | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | 64 | Polarizing Key | Plug to Cable | Multiple, Ribbon | ||
Gold | 0.76 Ám | 30 Áin | IDC | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | 40 | Polarizing Key | Plug to Cable | Multiple, Ribbon | ||
Gold | 0.76 Ám | 30 Áin | IDC | 3.34 ft | 1.02 m | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | 60 | Polarizing Key | Plug to Cable | Multiple, Twisted Pair (Flat) | ||
Gold | 0.76 Ám | 30 Áin | IDC | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | 40 | Polarizing Key | Plug to Cable | |||
Gold | 0.76 Ám | 30 Áin | IDC | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | Polarizing Key | Plug to Cable | Multiple, Ribbon | 16 | ||
Gold | 0.76 Ám | 30 Áin | IDC | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | 14 | Polarizing Key | Plug to Cable | Multiple, Ribbon | ||
Gold | 0.76 Ám | 30 Áin | IDC | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | 24 | Polarizing Key | Plug to Cable | Multiple, Ribbon | ||
Gold | 0.76 Ám | 30 Áin | IDC | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | 34 | Polarizing Key | Plug to Cable | Multiple, Ribbon | ||
Gold | 0.76 Ám | 30 Áin | IDC | 3.34 ft | 1.02 m | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | 50 | Polarizing Key | Plug to Cable | Multiple, Twisted Pair (Flat) | ||
Gold | 0.76 Ám | 30 Áin | IDC | 3 ft | 914.4 mm | 0.05 " | 1.27 mm | Unshielded | 2 | 0.1 in | 2.54 mm | 20 | Polarizing Key | Plug to Cable | Multiple, Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.41 | |
| 10 | $ 11.07 | |||
| 25 | $ 10.01 | |||
| 50 | $ 9.29 | |||
| 100 | $ 8.64 | |||
| 250 | $ 7.87 | |||
| 500 | $ 7.35 | |||
| 1000 | $ 6.88 | |||
Description
General part information
M1KXK Series

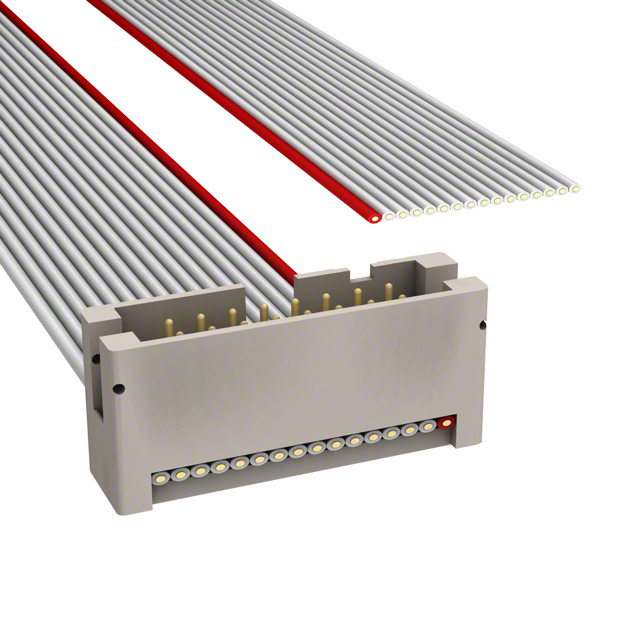

16 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)
