LZ1-00UA00-00U8
Obsoleteams-OSRAM USA INC.
EMITTER UV 410NM 1A SMD
LZ1-00UA00-00U8
Obsoleteams-OSRAM USA INC.
EMITTER UV 410NM 1A SMD
Description
General part information
LZ1-00UA00-00U8

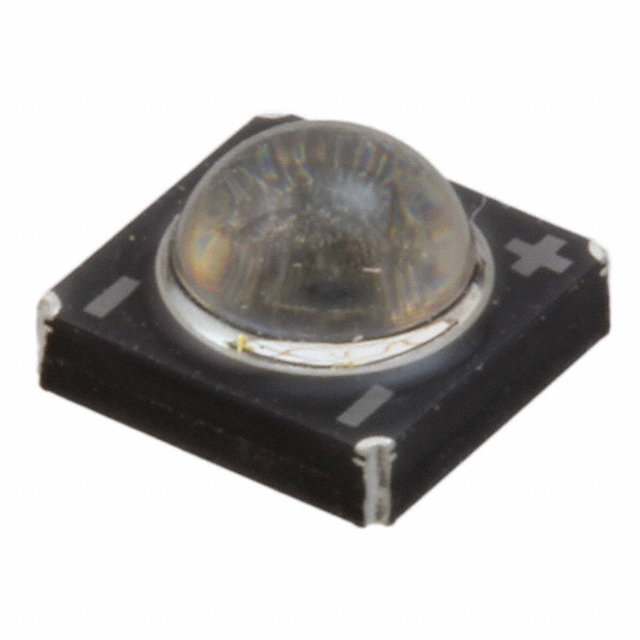

Ultraviolet (UV) Emitter 410nm 4.1V 1A 74° 4-SMD, No Lead Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | LZ1-00UA00-00U8 |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature | 125 °C |
| Orientation | Top View |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Type | Ultraviolet (UV) |
| Viewing Angle | 74 ° |
| Voltage - Forward (Vf) (Typ) | 4.1 V |
| Wavelength | 410 nm |
