B59772B0120A070
ActiveEPCOS - TDK Electronics

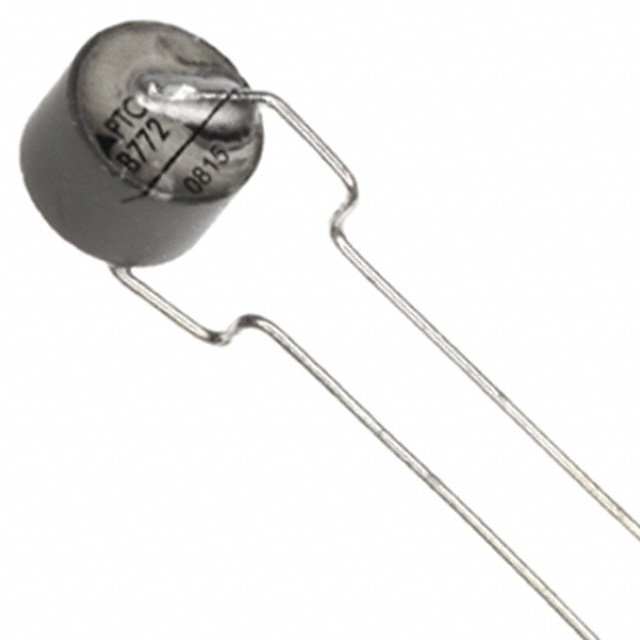

PTC RESET FUSE 420V RADIAL DISC
B59772B0120A070
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 420V RADIAL DISC
Description
General part information
B59772B0120A070
Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | B59772B0120A070 |
|---|---|
| Approval Agency | UL |
| Current - Max | 1.4 A |
| Current - Trip (It) | 86 mA |
| Height - Seated (Max) | 0.197 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 150 Ohms |
| Size / Dimension Diameter | 0.335 in |
| Size / Dimension Thickness | 0.276 in |
| Time to Trip | 3 s |
| Type | Ceramic |
| Voltage - Max | 420 V |
