RG142-4.3/10M-SM(QTY:25m)
ActiveMcGill Microwave Systems

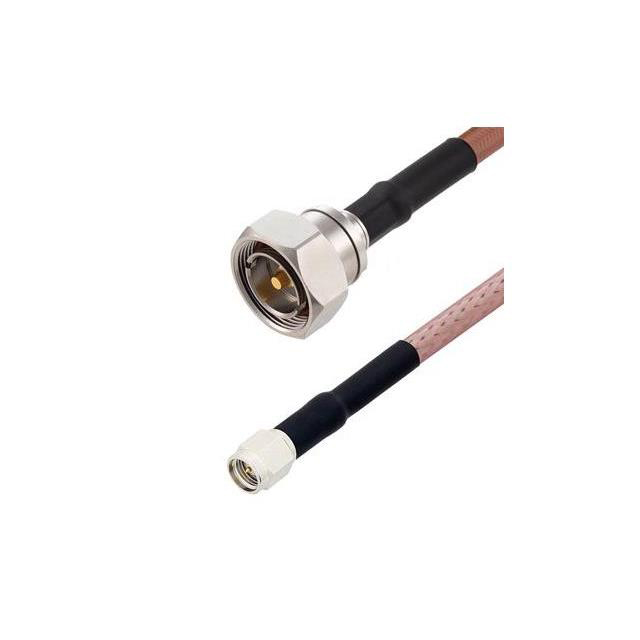

RG142 ASSY 4.3/10M-SMA MALE 25M
RG142-4.3/10M-SM(QTY:25m)
ActiveMcGill Microwave Systems
RG142 ASSY 4.3/10M-SMA MALE 25M
Description
General part information
RG142-4.3/10M-SM(QTY:25m)
RG142 ASSY 4.3/10M-SMA MALE 25M
Technical Specifications
Parameters and characteristics for this part
| Specification | RG142-4.3/10M-SM(QTY:25m) |
|---|---|
| 1st Connector | 4.3/10 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.3, 4.3 mm |
| 1st Connector Size (Dimension 2) | 10, 10 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 142 |
| Color | Brown |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 984.3 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.3/10 to SMA |
