PI3USB102GZLEX
ActiveDiodes Inc
DUAL SPDT FOR USB 2.0 HS COMPLIANCE AND FLOW THROUGH PINOUT WITH 5V PROTECTION
Deep-Dive with AI
Search across all available documentation for this part.
PI3USB102GZLEX
ActiveDiodes Inc
DUAL SPDT FOR USB 2.0 HS COMPLIANCE AND FLOW THROUGH PINOUT WITH 5V PROTECTION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3USB102GZLEX |
|---|---|
| -3db Bandwidth | 1 GHz |
| Applications | USB |
| Features | USB 2.0, Bi-Directional |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 1 |
| On-State Resistance (Max) [Max] | 5 Ohms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

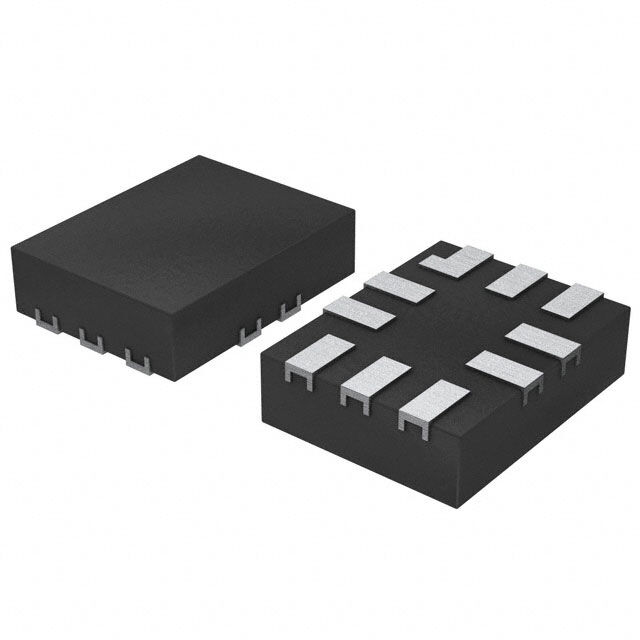

| Package / Case | 10-WFQFN |
| Supplier Device Package | 10-TQFN (1.3x1.6) |
| Voltage - Supply, Single (V+) [Max] | 5.5 V |
| Voltage - Supply, Single (V+) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.37 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.27 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.41 | |||
| 25 | $ 0.37 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.27 | |||
| Tape & Reel (TR) | 3500 | $ 0.26 | ||
| 7000 | $ 0.25 | |||
| 10500 | $ 0.25 | |||
| 17500 | $ 0.24 | |||
| 24500 | $ 0.24 | |||
| 35000 | $ 0.24 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.71 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.30 | |||
Description
General part information
PI3USB102G Series
Dual SPDT for USB 2.0 HS Compliance and Flow Through Pinout with 5V Protection
Documents
Technical documentation and resources
