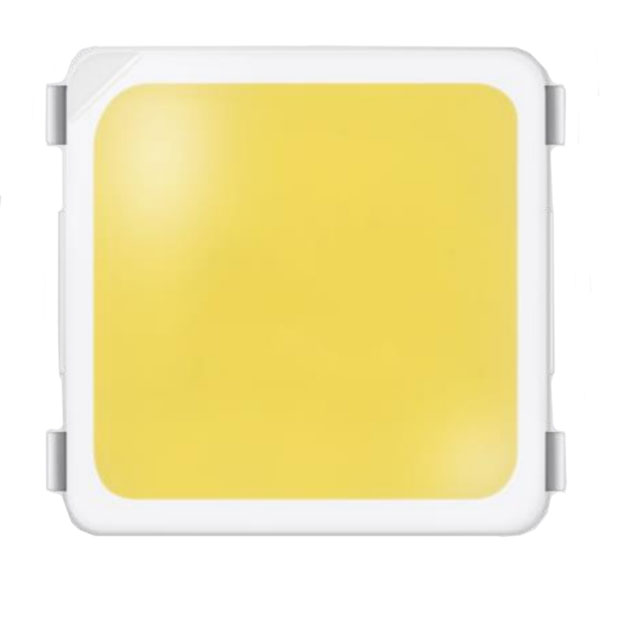

SPMWHD32AMV5XAV3SU

Samsung Semiconductor, Inc.

LED LM301B EVO WM WHT 3000K 1212

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSPMWHD32AMD3XAT0L2 SPMWHD32AMD3XAT0L2

SPMWHD32AMV5XAV3SU

Samsung Semiconductor, Inc.

LED LM301B EVO WM WHT 3000K 1212

Deep-Dive with AI

DocumentsSPMWHD32AMD3XAT0L2 SPMWHD32AMD3XAT0L2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPMWHD32AMV5XAV3SU	SPMWHD32 Series

CCT (K)	3000 K	2700 - 6500 K
Color	White, Warm	White, Warm, Cool, Neutral
CRI (Color Rendering Index)	80	70 - 90
Current - Max [Max]	200 mA	180 - 200 mA
Current - Test	65 mA	65 mA
Flux @ 25°C, Current - Test	38 lm	29 - 41 lm
Flux @ 25°C, Current - Test	-	40 lm
Flux @ 25°C, Current - Test	-	28 - 36 lm
Flux @ 25°C, Current - Test	-	34 lm
Flux @ 25°C, Current - Test [Max]	40 lm	32 - 42 lm
Flux @ 25°C, Current - Test [Min]	37 lm	26 - 39 lm
Flux @ 25░C, Current - Test	-	38 lm
Flux @ 25░C, Current - Test	-	36 lm
Flux @ 25░C, Current - Test	-	34 lm
Flux @ 85°C, Current - Test	-	39 lm
Height - Seated (Max) [Max] [z]	0.035 "	0.033 - 0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.85 - 0.9 mm
Lumens/Watt @ Current - Test	212 lm/W	173 - 229 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	1212	1212
Supplier Device Package	-	3030
Thermal Resistance of Package	-	7.5 ░C/W
Thermal Resistance of Package [diameter]	7.5 °C/W	7.5 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2.75 V	2.75 - 2.8 V

SPMWHD32 Series

LED LM301B WARM WHT 3500K 3030

Part	Thermal Resistance of Package [diameter]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	CCT (K)	Current - Max [Max]	Supplier Device Package	Current - Test	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	Viewing Angle	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Package / Case	Package / Case	CRI (Color Rendering Index)	Supplier Device Package
Samsung Semiconductor, Inc. SPMWHD32AMD3XAU0S0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	3500 K	180 mA	3030	65 mA	2.75 V	40 lm	37 lm	34 lm	120 °	Warm, White	0.85 mm	0.033 "	207 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMD7XARSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	5000 K	180 mA	3030	65 mA	2.75 V	34 lm	31 lm	28 lm	120 °	Cool, White	0.85 mm	0.033 "	173 lm/W	1212	3030 Metric	90
Samsung Semiconductor, Inc. SPMWHD32AMD3XARSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	5000 K	180 mA	3030	65 mA	2.75 V		39 lm		120 °	Cool, White	0.85 mm	0.033 "	218 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMD7XAV3S0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in		180 mA		65 mA	2.75 V	32 lm	29 lm	26 m	120 °	Warm, White	0.85 mm	0.033 "		1212	3030 Metric	90	1212
Samsung Semiconductor, Inc. SPMWHD32AMD3XAUSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	3500 K	180 mA	3030	65 mA	2.75 V	40 lm	37 lm	34 lm	120 °	Warm, White	0.85 mm	0.033 "	207 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMD3XAT0S0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	4000 K	180 mA	3030	65 mA	2.75 V		39 lm		120 °	Neutral, White	0.85 mm	0.033 "	218 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMVKXAV3SW	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	3000 K	200 mA	3030	65 mA	2.8 V		38	34 lm	120 °	Warm, White	0.9 mm	0.035 "	198 lm/W	1212	3030 Metric	90
Samsung Semiconductor, Inc. SPMWHD32AMD3XAVSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in		180 mA	3030	65 mA	2.75 V	40 lm	37 lm	34 lm	120 °	Warm, White	0.85 mm	0.033 "	207 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMD7XAWSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	2700 K	180 mA	3030	65 mA	2.75 V		29 lm		120 °	Warm, White	0.85 mm	0.033 "		1212	3030 Metric	90
Samsung Semiconductor, Inc. SPMWHD32AMD3XAV0S0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in		180 mA	3030	65 mA	2.75 V	40 lm	37 lm	34 lm	120 °	Warm, White	0.85 mm	0.033 "	207 lm/W	1212	3030 Metric	70

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.53
		10	$ 0.32
		100	$ 0.19
		1000	$ 0.15
		2000	$ 0.13
	Digi-Reel®	1	$ 0.53
		10	$ 0.32
		100	$ 0.19
		1000	$ 0.15
		2000	$ 0.13
	Tape & Reel (TR)	4000	$ 0.13
		8000	$ 0.12
		12000	$ 0.11
		28000	$ 0.11

Description

General part information

SPMWHD32 Series

LED Lighting LM301B EVO White, Warm 3000K 3-Step MacAdam Ellipse 2.75V 65mA 120° 1212 (3030 Metric)

Documents

Technical documentation and resources

SPMWHD32AMD3XAT0L2

Datasheet

SPMWHD32AMD3XAT0L2

Datasheet
