1087107
ActivePhoenix Contact

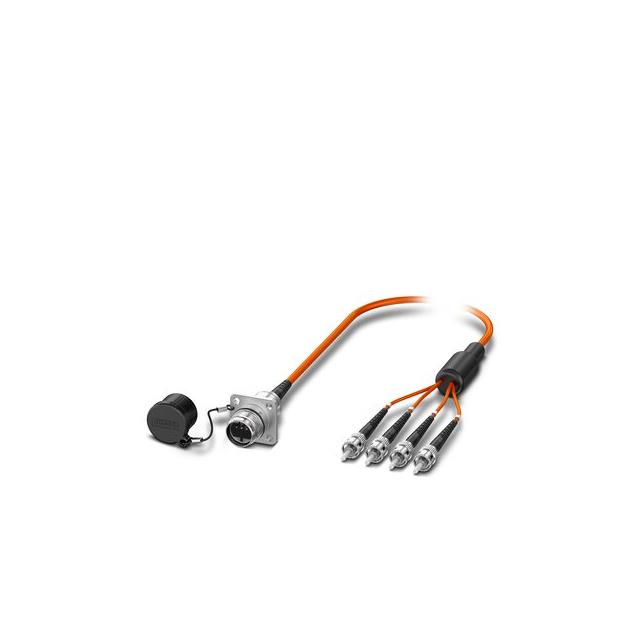

FIBER OPTIC CBL M17-ST MULT 2M
1087107
ActivePhoenix Contact
FIBER OPTIC CBL M17-ST MULT 2M
Description
General part information
1087107
Cable Fiber Optic M17 To ST (4) 62.5/125 6.6' (2.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1087107 |
|---|---|
| 1st Connector | M17 |
| 2nd Connector | ST |
| 2nd Connector Count | 4 |
| Bend Radius | 30 mm |
| Color - Cable | Orange |
| Color - Connectors | Silver |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 62.5 µm |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 6.6 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | LSZH |
| Type | OM1, Multimode |
