3K115-G2-3RN3AW
ActiveGrayhill Inc.
SWITCH KEYPAD 15KEY ILLUM
3K115-G2-3RN3AW
ActiveGrayhill Inc.
SWITCH KEYPAD 15KEY ILLUM
Description
General part information
3K115-G2-3RN3AW

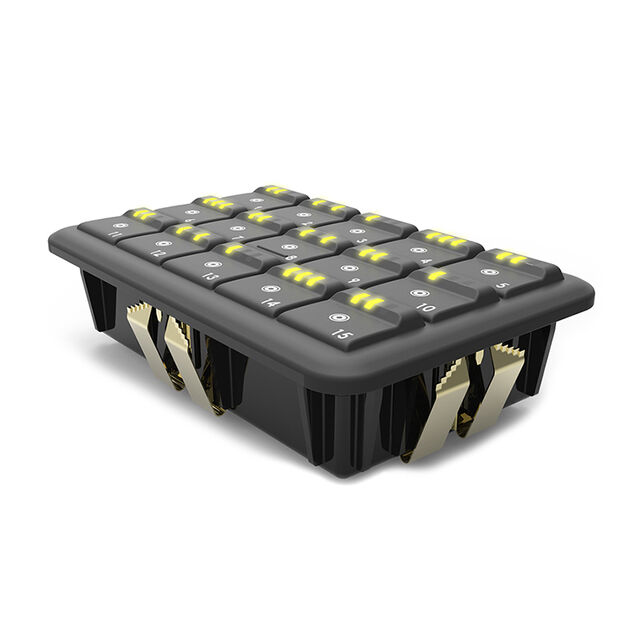

Keypad Switch 15 Rubber Overlay Keys Snap Dome Contacts CAN Bus (CANopen) Output Illuminated
Technical Specifications
Parameters and characteristics for this part
| Specification | 3K115-G2-3RN3AW |
|---|---|
| Approval Agency | CE |
| Color | Black |
| Illumination | Illuminated |
| Ingress Protection Description | Waterproof, Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP6K7, IP69K |
| Key Type | Rubber Overlay |
| Legend | Targets |
| Legend Color | White |
| Legend Type | Fixed |
| Matrix Columns | 5 |
| Matrix Rows | 3 |
| Mounting Type | Front, Panel Mount |
| Number of Keys | 15 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Operational Life | 1000000 Cycles |
| Output Type | CAN Bus (CANopen) |
| Panel Cutout Diameter | 57.15 mm |
| Panel Cutout Shape | Circular |
| Switch Type | Snap Dome |
| Termination Style | Connector |
