T4171110404-001
ActiveTE Connectivity AMP Connectors

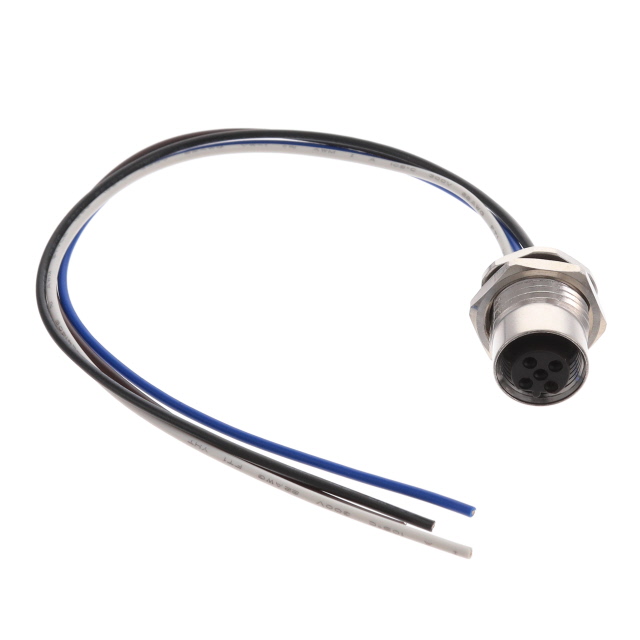

CONN PLUG FMALE 4P WIRE LEADS
Deep-Dive with AI
Search across all available documentation for this part.
T4171110404-001
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 4P WIRE LEADS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4171110404-001 | T41711 Series |
|---|---|---|
| 1st Connector Gender | - | Female Sockets |
| 1st Connector Mounting Type | - | Panel Mount |
| 1st Connector Number of Positions | - | 5 |
| 1st Connector Number of Positions | - | 12 |
| 1st Connector Number of Positions Loaded | - | All |
| 1st Connector Number of Positions Loaded | - | 2 - 4 |
| 1st Connector Orientation | - | B, A, D |
| 1st Connector Shell Size - Insert | - | M12 |
| 1st Connector Type | - | Receptacle, Plug |
| 2nd Connector Type | - | Wire Leads |
| Applications | Industrial | Industrial |
| Assembly Configuration | - | Standard |
| Cable Material | - | Polyvinyl Chloride (PVC) |
| Cable Type | - | Individual |
| Color | Silver | Multiple, Silver, Blue, Brown |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Length | - | 200 mm |
| Length | - | 0.66 - 1.64 ft |
| Length | - | 500 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 4 | 2 - 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | B | A, B |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-4 | M12-2, M12-4 |
| Shielding | Shielded | Shielded, Unshielded |
| Termination | Wire Leads | Wire Leads |
| Usage | - | Industrial Environments |
| Voltage Rating | 250 VDC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.90 | |
| 10 | $ 6.02 | |||
| 25 | $ 5.86 | |||
| 50 | $ 5.70 | |||
| 100 | $ 5.58 | |||
T41711 Series
CIRC CBL 5POS RCPT TO WIRE 0.66'
| Part | 1st Connector Orientation | Ingress Protection | 1st Connector Gender | 1st Connector Number of Positions | Cable Material | 1st Connector Type | Usage | Color | 1st Connector Shell Size - Insert | Cable Type | Length | Length [x] | Assembly Configuration | 1st Connector Number of Positions Loaded | 1st Connector Mounting Type | 2nd Connector Type | Length [x] | 1st Connector Number of Positions Loaded | Connector Type | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Primary Material | Contact Finish - Mating | Contact Material | Shielding | Shell Material | Insert Material | Shell Size - Insert | Orientation | Applications | Number of Positions | Contact Finish Thickness - Mating | Current Rating (Amps) | Termination | Shell Finish | Voltage Rating | 1st Connector Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4171110405-001 | B | IP67 - Dust Tight, Waterproof | Female Sockets | 5 | Polyvinyl Chloride (PVC) | Receptacle | Industrial Environments | Multiple | M12 | Individual | 200 mm | 0.66 ft | Standard | All | Panel Mount | Wire Leads | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171110004-002 | A | IP67 - Dust Tight, Waterproof | Female Sockets | 5 | Polyvinyl Chloride (PVC) | Receptacle | Industrial Environments | Multiple | M12 | Individual | 1.64 ft | Standard | Panel Mount | Wire Leads | 500 mm | 4 | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171110504-001 | D | IP67 - Dust Tight, Waterproof | Female Sockets | 5 | Polyvinyl Chloride (PVC) | Receptacle | Industrial Environments | Multiple | M12 | Individual | 200 mm | 0.66 ft | Standard | Panel Mount | Wire Leads | 4 | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171110002-001 | IP67 - Dust Tight, Waterproof | Silver | Female Sockets, Plug | Bulkhead - Front Side Nut | 85 °C | -40 °C | UL94 V-0 | Metal | Gold | Copper Alloy | Shielded | Copper Alloy | Nylon, Polyamide (PA) | M12-2 | A | Industrial | 2 | Flash | 4 A | Wire Leads | Nickel | 250 VDC | |||||||||||||||||
TE Connectivity AMP Connectors T4171110505-001 | D | IP67 - Dust Tight, Waterproof | Female Sockets | 5 | Polyvinyl Chloride (PVC) | Receptacle | Industrial Environments | Multiple | M12 | Individual | 200 mm | 0.66 ft | Standard | All | Panel Mount | Wire Leads | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171110004-001 | A | IP67 - Dust Tight, Waterproof | Female Sockets | 5 | Polyvinyl Chloride (PVC) | Receptacle | Industrial Environments | Multiple | M12 | Individual | 200 mm | 0.66 ft | Standard | Panel Mount | Wire Leads | 4 | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171110404-001 | IP67 - Dust Tight, Waterproof | Silver | Female Sockets, Plug | Bulkhead - Front Side Nut | 85 °C | -40 °C | UL94 V-0 | Metal | Gold | Copper Alloy | Shielded | Copper Alloy | Nylon, Polyamide (PA) | M12-4 | B | Industrial | 4 | Flash | 4 A | Wire Leads | Nickel | 250 VDC | |||||||||||||||||
TE Connectivity AMP Connectors T4171110503-001 | D | IP67 - Dust Tight, Waterproof | Female Sockets | 5 | Polyvinyl Chloride (PVC) | Receptacle | Industrial Environments | Multiple | M12 | Individual | 200 mm | 0.66 ft | Standard | Panel Mount | Wire Leads | 3 | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171110502-001 | D | IP67 - Dust Tight, Waterproof | Female Sockets | 5 | Polyvinyl Chloride (PVC) | Receptacle | Industrial Environments | Blue, Brown | M12 | Individual | 200 mm | 0.66 ft | Standard | Panel Mount | Wire Leads | 2 | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171110005-001 | A | IP67 - Dust Tight, Waterproof | Female Sockets | 5 | Polyvinyl Chloride (PVC) | Receptacle | Industrial Environments | Multiple | M12 | Individual | 200 mm | 0.66 ft | Standard | All | Panel Mount | Wire Leads | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171130012-001 | A | IP67 - Dust Tight, Waterproof | Female Sockets | Plug | Industrial Environments | Multiple | M12 | Individual | 200 mm | 0.66 ft | Standard | All | Panel Mount | Wire Leads | Unshielded | 12 |
Description
General part information
T41711 Series
4 Position Circular Connector Plug, Female Sockets Wire Leads
Documents
Technical documentation and resources
