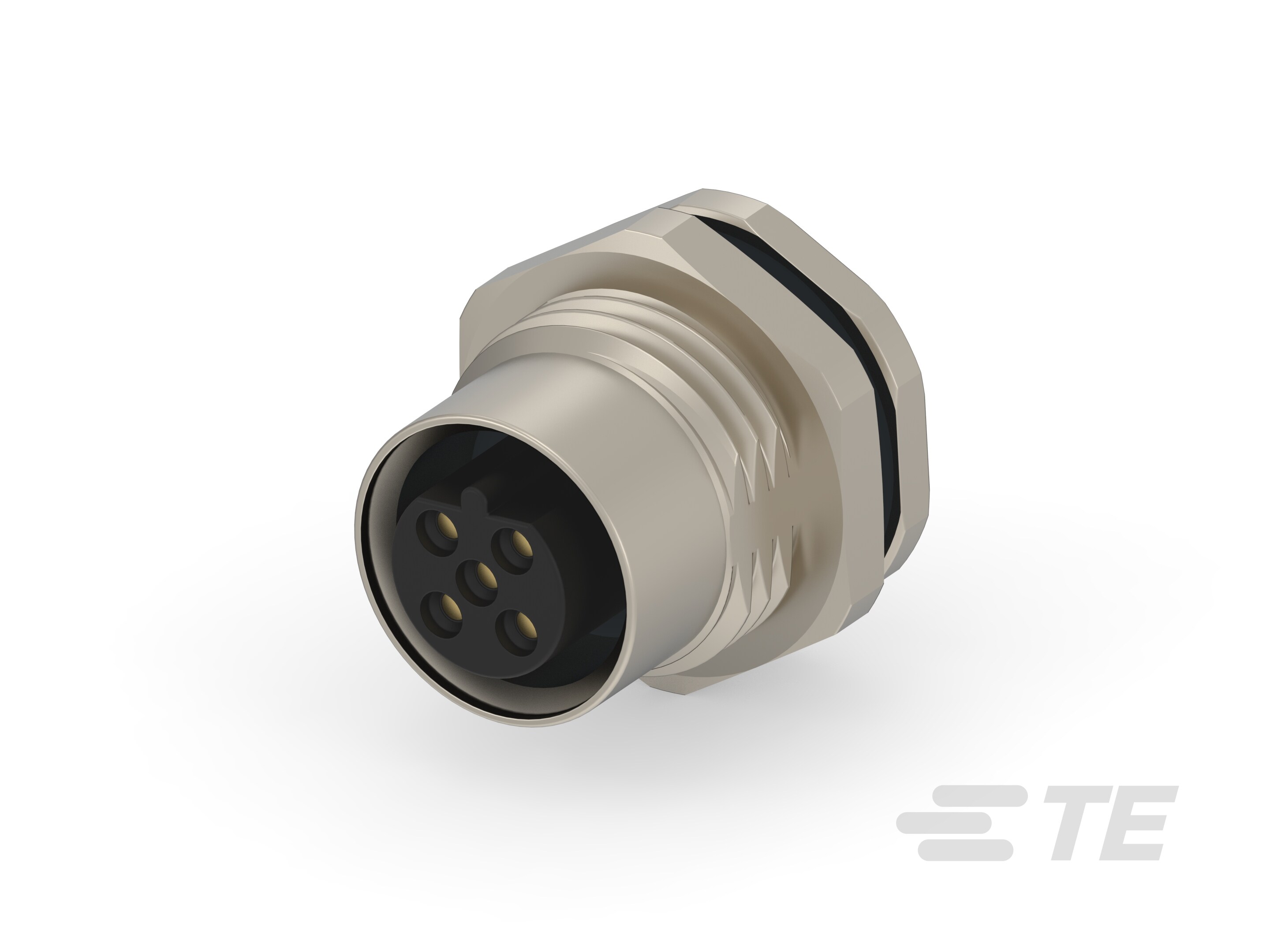

Specification	T4171110404-001

Applications	Industrial
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Current Rating	4 A
Fastening Type	Threaded
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	B
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Wire Leads
Voltage Rating	250 V

T41711 Series

Part	1st Connector Type	Usage	1st Connector Orientation	Cable Material	Length	1st Connector Mounting Type	Assembly Configuration	1st Connector Number of Positions Loaded	1st Connector Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	2nd Connector Type	1st Connector Shell Size - Insert	Color	Cable Type	Shielding	1st Connector Gender
TE Connectivity AMP Connectors 2273043-3	Receptacle	Industrial Environments	A	Polyurethane (PUR)	16.4 ft	Free Hanging (In-Line)	Standard	All	3 positions	Dust Tight Water Resistant Waterproof	IP65 IP67	Wire Leads	M12	Gray	Round	Shielded	Female Sockets
TE Connectivity AMP Connectors 2273043-1	Receptacle	Industrial Environments	A	Polyurethane (PUR)	4.92 ft	Free Hanging (In-Line)	Standard	All	3 positions	Dust Tight Water Resistant Waterproof	IP65 IP67	Wire Leads	M12	Gray	Round	Shielded	Female Sockets
