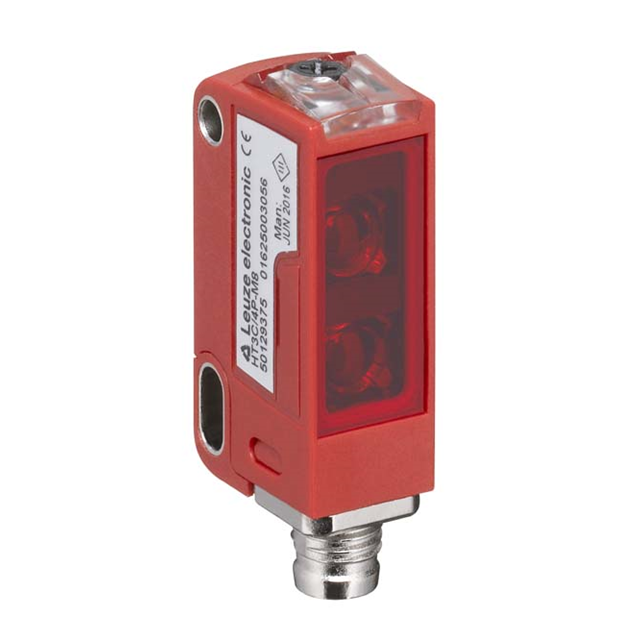

HT3C/4P-M8

Active

Leuze

DIFFUSE BACKGROUND SUPPRESSION

Search across all available documentation for this part.

Active

Leuze

DIFFUSE BACKGROUND SUPPRESSION

Technical Specifications

Parameters and characteristics for this part

Specification	HT3C/4P-M8

Connection Method	Connector, M12
Ingress Protection	IEC 60947-5-2 IP67, IEC 60947-5-2 IP69K
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON
Response Time	500 µs
Sensing Distance [Max]	450 mm
Sensing Distance [Max]	17.717 "
Sensing Distance [Min]	5 mm
Sensing Distance [Min]	0.197 in
Sensing Method	Diffuse, Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

DIFFUSE BACKGROUND SUPPRESSION

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Sensing Method	Ingress Protection	Output Configuration	Response Time	Connection Method	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]
Leuze HT3C/4P-M8	30 VDC	10 VDC	Red LED	Background Suppression, Diffuse	IEC 60947-5-2 IP67, IEC 60947-5-2 IP69K	PNP - Dark-ON/Light-ON	500 µs	Connector, M12	-40 °C	60 °C	450 mm	5 mm	17.717 "	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 161.00

General part information

Diffuse, Background Suppression Optical Sensor 0.197" ~ 17.717" (5mm ~ 450mm) PNP - Dark-ON/Light-ON
