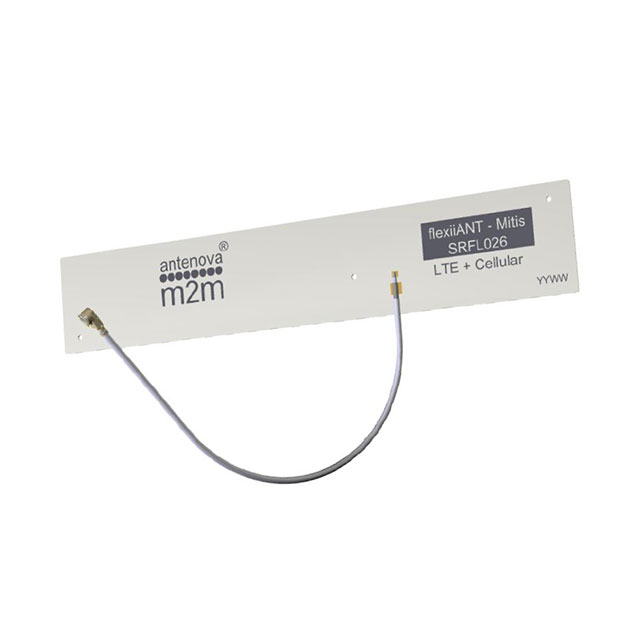

SRFL026-100

Active

Antenova

RF ANT 748MHZ/892MHZ FLAT PATCH

Search across all available documentation for this part.

Active

Antenova

RF ANT 748MHZ/892MHZ FLAT PATCH

Technical Specifications

Parameters and characteristics commom to parts in this series

ANTENNA LTE -1.7DBI GAIN 798MHZ/960MHZ/2170MHZ/2400MHZ/2690MHZ BAG

Part	Return Loss	Termination	Height (Max)	Height (Max) [Max]	Frequency Group	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	VSWR	Frequency (Center/Band)	Features	Features	Mounting Type	RF Family/Standard	Number of Bands [custom]	Gain
Antenova SRFL026-200	-10 dB	IPEX MHF1, U.FL (UMCC)	0.15 mm	0.006 in	Wide Band	2.17 GHz, 2.4 GHz, 2.69 GHz, 798 MHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 698 MHz, 824 MHz	Flat Patch	3.1	1.94 GHz, 2.35 GHz, 2.6 GHz, 748 MHz, 892 MHz	Cable	200 mm	Adhesive	Cellular	5	3.5 dBi
Antenova SRFL026-100	-10 dB	IPEX MHF1, U.FL (UMCC)	0.15 mm	0.006 in	Wide Band	2.17 GHz, 2.4 GHz, 2.69 GHz, 798 MHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 698 MHz, 824 MHz	Flat Patch	3.1	1.94 GHz, 2.35 GHz, 2.6 GHz, 748 MHz, 892 MHz	Cable	100 mm	Adhesive	Cellular	5	3.5 dBi
Antenova SRFL026-150	-10 dB	IPEX MHF1, U.FL (UMCC)	0.15 mm	0.006 in	Wide Band	2.17 GHz, 2.4 GHz, 2.69 GHz, 798 MHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.5 GHz, 698 MHz, 824 MHz	Flat Patch	3.1	1.94 GHz, 2.35 GHz, 2.6 GHz, 748 MHz, 892 MHz	Cable - 150mm		Adhesive	Cellular	5	3.5 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GSM, LTE, W-CDMA Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
