D01-9953242

Active

Harwin Inc.

SOCKET, SIL, W/WRAP, 32WAY

Search across all available documentation for this part.

Active

Harwin Inc.

SOCKET, SIL, W/WRAP, 32WAY

Technical Specifications

Parameters and characteristics for this part

Specification	D01-9953242

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	196.9 µin
Contact Finish Thickness - Post	5 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	1 x 32
Number of Positions or Pins (Grid) [custom]	32
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Wire Wrap
Termination Post Length [x]	0.51 in
Termination Post Length [x]	12.95 mm
Type	SIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

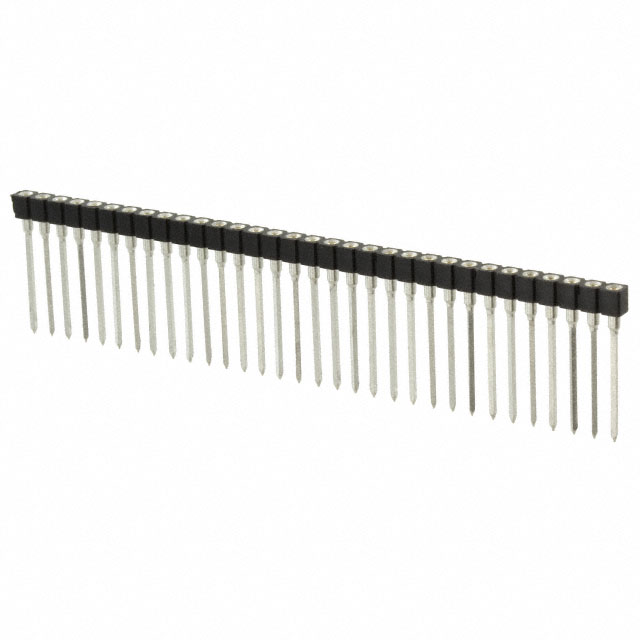

32 (1 x 32) Pos SIP Socket Gold Through Hole
