General part information

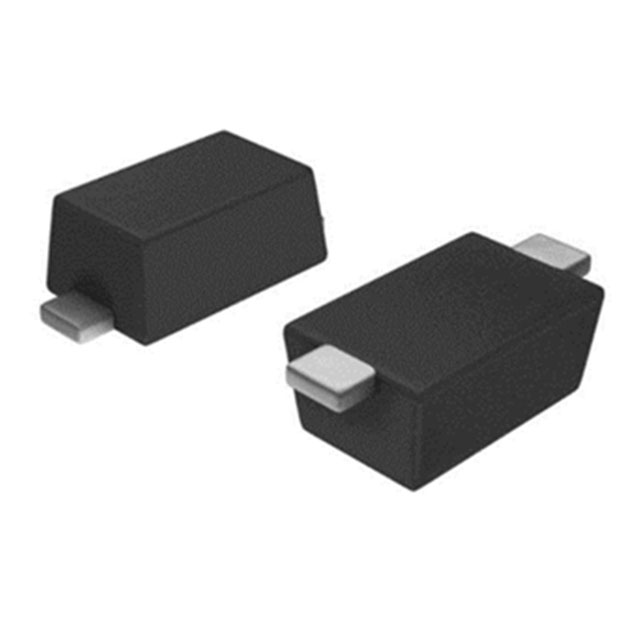

ESD5Z12V
Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Technical Specifications
Parameters and characteristics for this part
| Specification | ESD5Z12V |
|---|---|
| Applications | General Purpose |
| Capacitance | 35 pF |
| Current - Peak Pulse | 5 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SOD-523 |
| Package Name | SOD-523 |
| Power - Peak Pulse | 174 W |
| Power Line Protection | Yes |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 14.1 V |
| Voltage - Reverse Standoff (Typ) | 12 V |
