PRB.M0.6GL.LC52G

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRB.M0.6GL.LC52G

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.40
		10	$ 26.62
		25	$ 25.47
		50	$ 24.65
		100	$ 23.83
		250	$ 22.51
LCSC	Piece	1	$ 55.51
		200	$ 22.15
		500	$ 21.41
		1000	$ 21.05

Description

General part information

PRB.M0 Series

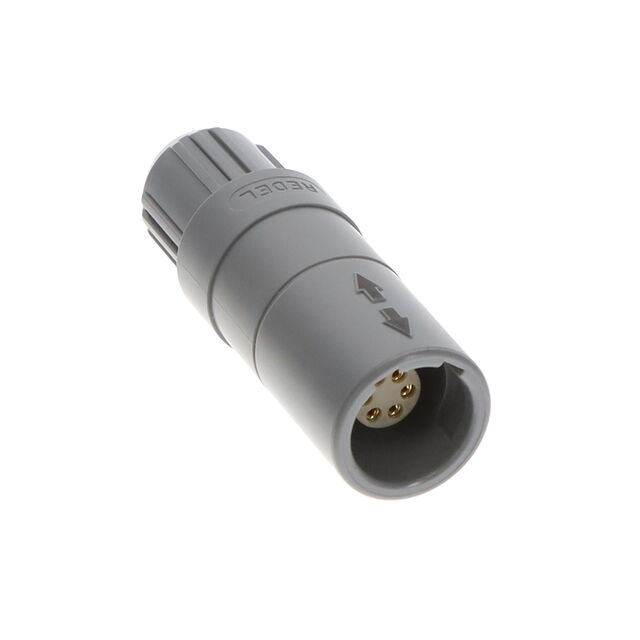

6 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PRB.M0.6GL.LC52G	PRB.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polyetherimide (PEI), Polysulfone (PSU)
Cable Opening	-	2.7 mm
Cable Opening	-	0.154 in
Cable Opening	-	3.9 mm
Cable Opening	-	0.106 in
Cable Opening	-	0.209 - 0.256 in
Cable Opening	-	5.3 - 6.5 mm
Cable Opening [Max] [custom]	0.205 in	0.205 in
Cable Opening [Max] [custom]	5.2 mm	5.2 mm
Cable Opening [Min] [custom]	0.157 in	0.157 in
Cable Opening [Min] [custom]	4 mm	4 mm
Color	Gray	Black, Gray, Yellow
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	6 A	5 - 8 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	4 - 8
Operating Temperature [Max]	150 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	B	B
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polyetherimide (PEI), Polysulfone (PSU)
Shell Size - Insert	M06	M04, M08, M06
Shielding	Unshielded	Unshielded

PRB.M0 Series

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Mounting Type	Shielding	Shell Material	Connector Type	Current Rating (Amps)	Insert Material	Ingress Protection	Contact Finish - Mating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Applications	Shell Size - Insert	Orientation	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Number of Positions	Fastening Type	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
LEMO PRB.M0.4TL.LC39N	Free Hanging (In-Line)	Unshielded	Polyetherimide (PEI)	Receptacle, Female Sockets	8 A	Polyetheretherketone (PEEK)	IP50	Gold	2.7 mm	0.154 in	3.9 mm	0.106 in	Automotive, Industrial, Medical, Testing Equipment & Measurement	M04	B	Plastic	-50 °C	170 °C	Backshell	Black	4	Detent Lock, Push-Pull	Polyetherimide (PEI)
LEMO PRB.M0.8GL.LC39J	Free Hanging (In-Line)	Unshielded	Polysulfone (PSU)	Receptacle, Female Sockets	5 A	Polyetheretherketone (PEEK)	IP50	Gold	2.7 mm	0.154 in	3.9 mm	0.106 in	Automotive, Industrial, Medical, Testing Equipment & Measurement	M08	B	Plastic	-50 °C	150 °C	Backshell	Gray, Yellow	8	Detent Lock, Push-Pull	Polysulfone (PSU)
LEMO PRB.M0.6GL.LC52G	Free Hanging (In-Line)	Unshielded	Polysulfone (PSU)	Receptacle, Female Sockets	6 A	Polyetheretherketone (PEEK)	IP50	Gold					Automotive, Industrial, Medical, Testing Equipment & Measurement	M06	B	Plastic	-50 °C	150 °C	Backshell	Gray	6	Detent Lock, Push-Pull	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PRB.M0.6GL.LC65GZ	Free Hanging (In-Line)	Unshielded	Polysulfone (PSU)	Receptacle, Female Sockets	6 A	Polyetheretherketone (PEEK)	IP50	Gold					Automotive, Industrial, Medical, Testing Equipment & Measurement	M06	B	Plastic	-50 °C	150 °C	Backshell	Gray	6	Detent Lock, Push-Pull	Polysulfone (PSU)					0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PRB.M0.8GL.LC52GZ	Free Hanging (In-Line)	Unshielded	Polysulfone (PSU)	Receptacle, Female Sockets	5 A	Polyetheretherketone (PEEK)	IP50	Gold					Automotive, Industrial, Medical, Testing Equipment & Measurement	M08	B	Plastic	-50 °C	150 °C	Backshell	Gray	8	Detent Lock, Push-Pull	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PRB.M0.8GL.LC39GZ	Free Hanging (In-Line)	Unshielded	Polysulfone (PSU)	Receptacle, Female Sockets	5 A	Polyetheretherketone (PEEK)	IP50	Gold	2.7 mm	0.154 in	3.9 mm	0.106 in	Automotive, Industrial, Medical, Testing Equipment & Measurement	M08	B	Plastic	-50 °C	150 °C	Backshell	Gray	8	Detent Lock, Push-Pull	Polysulfone (PSU)
