RAA207705GBM#HC0
ActiveRenesas Electronics Corporation
IC REG BUCK ADJ 5A 20CSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAA207705GBM#HC0
ActiveRenesas Electronics Corporation
IC REG BUCK ADJ 5A 20CSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RAA207705GBM#HC0 | RAA207705 Series |
|---|---|---|
| - | - | |
| Current - Output | 5 A | 5 A |
| Frequency - Switching [Max] | 2 MHz | 2 MHz |
| Function | Step-Down | Step-Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |

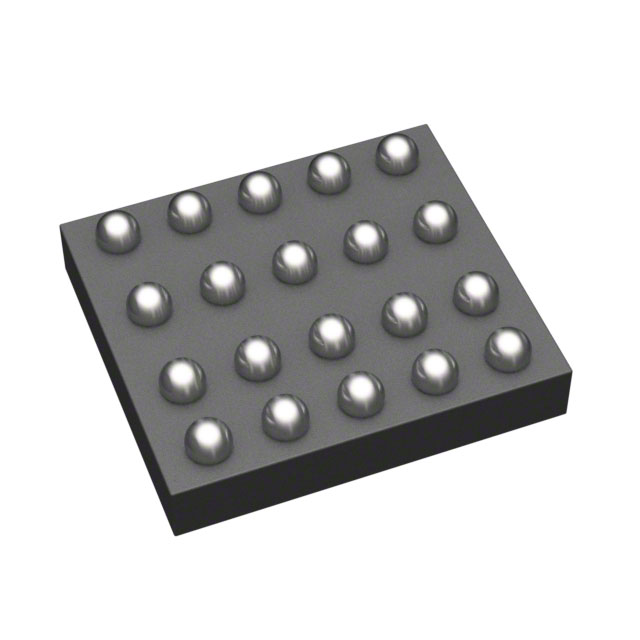

| Package / Case | 20-WFBGA, CSPBGA | 20-WFBGA, CSPBGA |
| Supplier Device Package | 20-CSP (2.67x2.37) | 20-CSP (2.67x2.37) |
| Synchronous Rectifier | True | True |
| Topology | Buck | Buck |
| Voltage - Input (Max) [Max] | 16 V | 16 V |
| Voltage - Input (Min) [Min] | 3 V | 3 V |
| Voltage - Output (Max) [Max] | 5 V | 5 V |
| Voltage - Output (Min/Fixed) | 0.8 V | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
RAA207705 Series
IC REG BUCK ADJ 5A 20CSP
| Part | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Synchronous Rectifier | Current - Output | Voltage - Output (Max) [Max] | Voltage - Output (Min/Fixed) | Supplier Device Package | Topology | Function | Voltage - Input (Min) [Min] | Number of Outputs | Mounting Type | Package / Case | Output Configuration | Frequency - Switching [Max] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation RAA207705GBM#HC0 | Adjustable | 125 ¯C | -40 °C | 5 A | 5 V | 0.8 V | 20-CSP (2.67x2.37) | Buck | Step-Down | 3 V | 1 | Surface Mount | 20-WFBGA, CSPBGA | Positive | 2 MHz | 16 V | |
Renesas Electronics Corporation RAA207705AGBM#HC0 |
Description
General part information
RAA207705 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 20-WFBGA, CSPBGA
