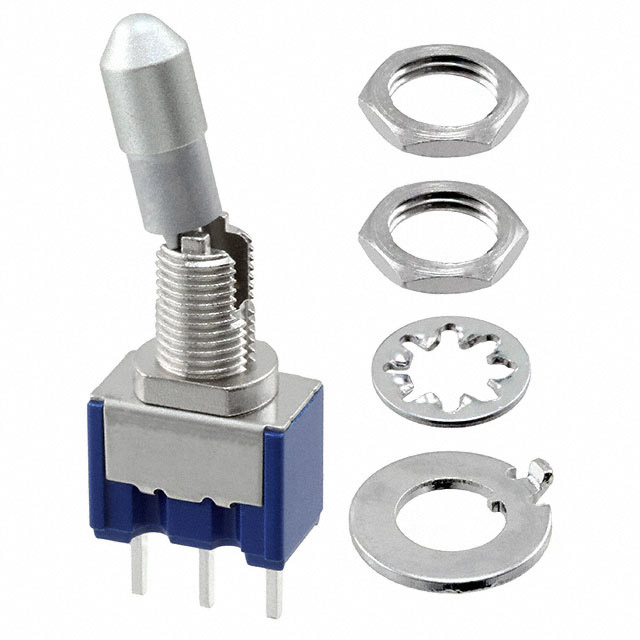

8E1012-Z

Active

Nidec Components Corporation

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Active

Nidec Components Corporation

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8E1012-Z

Actuator Length [x]	16.5 mm
Actuator Type	Locking Lever
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Voltage Rating - DC	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Circuit	Illumination	Features	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Length [x]	Electrical Life	Voltage Rating - AC	Actuator Type	Bushing Thread
Nidec Components Corporation 8E1012-Z	30 V	On-On	-30 ░C	85 °C	PC Pin	SPDT	Non-Illuminated	Sealed - Flux Protection	6.5 mm	4 A 6 A	16.5 mm	50000 Cycles	125 V	Locking Lever	1/4-40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
