704.614.2

Active

EAO

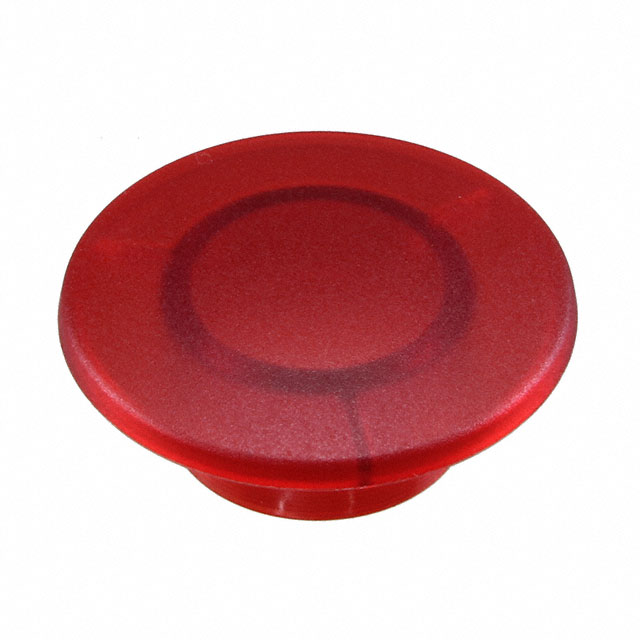

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS LENS MUSHROOM CAP

Search across all available documentation for this part.

Active

EAO

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS LENS MUSHROOM CAP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switches LPB RND WRED LENS

Technical documentation and resources

Specification	704.614.2	04 Series

	-	-
(Select First, Then Apply Filters) Compatible Series	-	04, EAO
Actuator Type	-	Pushbutton, Round, Pushbutton, Square
Color	Red	Red
For Use With/Related Products	04 Series	04 Series
Illumination	Illuminated	Non-Illuminated, Illuminated - Orange, Illuminated - White, Illuminated
Mounting Type	Snap Fit	Snap Fit
Panel Cutout Dimensions	-	22.5 mm
Panel Cutout Dimensions	-	30.5 mm
Requires	-	Illumination Source, Contact Block(s)
Shape	Round	Round
Switch Type	Pushbutton	Pushbutton
Type	-	Momentary, Maintained

Part	Panel Cutout Dimensions [diameter]	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Requires	Type	Illumination	Mounting Type	Color	For Use With/Related Products	Switch Type	Shape	Panel Cutout Dimensions
EAO EUS-704.01-4692	22.5 mm	04, EAO	Pushbutton, Round	Contact Block(s), Illumination Source	Momentary
EAO EUS-704.03-7002	22.5 mm	04, EAO	Pushbutton, Square	Contact Block(s)	Maintained	Non-Illuminated
EAO EUS-704.03-0203	22.5 mm	04, EAO	Pushbutton, Square	Contact Block(s), Illumination Source	Momentary	Illuminated - Orange
EAO EUS-704.03-5267	22.5 mm	04, EAO	Pushbutton, Square	Contact Block(s), Illumination Source	Maintained	Illuminated - White
EAO EUS-704.02-3195	22.5 mm	04, EAO	Pushbutton, Round	Contact Block(s)	Momentary	Non-Illuminated
EAO 704.614.2						Illuminated	Snap Fit	Red	04 Series	Pushbutton	Round
EAO EUS-704.020.7
EAO 704.240.708		04, EAO	Pushbutton, Square	Contact Block(s)	Maintained	Non-Illuminated						30.5 mm
EAO EUS-704.02-2119	22.5 mm	04, EAO	Pushbutton, Round	Contact Block(s)	Momentary	Non-Illuminated
