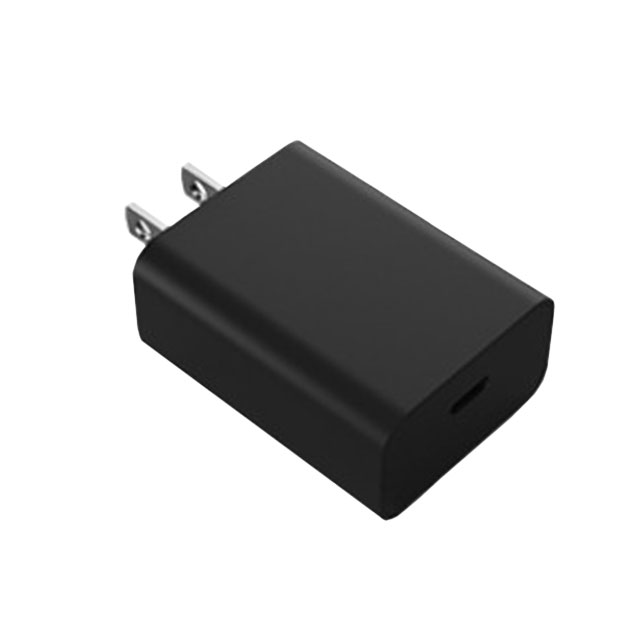

AQ15A-050A

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 15W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 15W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 15 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AQ15A-050A	AQ15A Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, CB, cULus	CE, CB, cULus
Current - Output (Max) [Max]	3 A	3 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	NEMA 1-15P	NEMA 1-15P
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption [Max]	75 mW	75 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	USB C Receptacle	USB C Receptacle
Power (Watts)	15 W	15 W
Region Utilized	North America	North America
Size / Dimension [x]	2.05 "	2.05 "
Size / Dimension [x]	52 mm	52 mm
Size / Dimension [y]	1.57 "	1.57 "
Size / Dimension [y]	40 mm	40 mm
Size / Dimension [z]	23.3 mm	23.3 mm
Size / Dimension [z]	0.92 "	0.92 "
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	5 V	5 V

AC/DC WALL MOUNT ADAPTER 5V 15W

Part	Form	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Input Type	No Load Power Consumption [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Input Connector	Voltage - Output	Current - Output (Max) [Max]	Region Utilized	Efficiency	Output Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Phihong USA AQ15A-050A	Wall Mount (Class II)	15 W	90 VAC	264 VAC	ITE (Commercial)	Fixed Blade	75 mW	40 °C	0 °C	CB, CE, cULus	NEMA 1-15P	5 V	3 A	North America	Level VI	USB C Receptacle	23.3 mm	2.05 "	1.57 "	52 mm	40 mm	0.92 "
Phihong USA AQ15A-050AW	Wall Mount (Class II)	15 W	90 VAC	264 VAC	ITE (Commercial)	Fixed Blade	75 mW	40 °C	0 °C	CB, CE, cULus	NEMA 1-15P	5 V	3 A	North America	Level VI	USB C Receptacle	23.3 mm	2.05 "	1.57 "	52 mm	40 mm	0.92 "
