PE45491
ActivePasternack

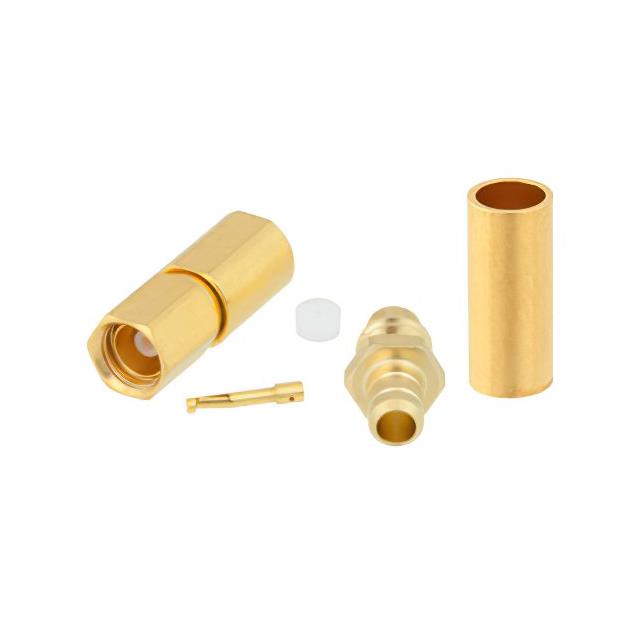

SSMC PLUG CONNECTOR CRIMP/SOLDER
PE45491
ActivePasternack
SSMC PLUG CONNECTOR CRIMP/SOLDER
Description
General part information
PE45491
SSMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45491 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | 316, LMR-100, 188, RG-174 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SSMC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Insertion Loss | 0.3 dB |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 250 V |
