102153-1 - 5102153-1

102153-1

Active
TE Connectivity AMP Connectors

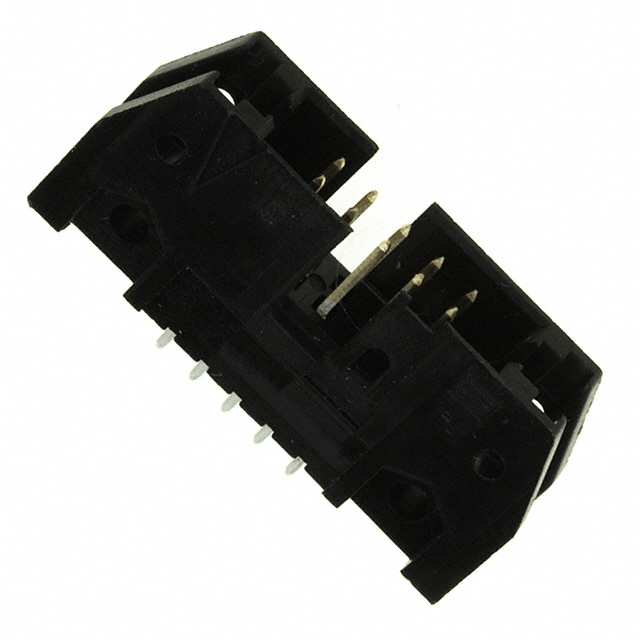

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification102153-1102153 Series
Connector TypeHeaderHeader
Contact Finish - MatingGold or Gold-PalladiumGold or Gold-Palladium
Contact Finish - PostTin-LeadTin-Lead
Contact Finish Thickness - Mating15 µin15 µin
Contact Finish Thickness - Mating0.38 µm0.38 µm
Contact Finish Thickness - Post2.54 µm2.54 µm
Contact Finish Thickness - Post100 µin100 µin
Contact Length - Mating6.1 mm6.1 mm
Contact Length - Mating [x]0.24 in0.24 in
Contact Length - Post2.79 mm2.79 mm
Contact Length - Post [x]0.11 in0.11 in
Contact ShapeSquareSquare
Contact TypeMale PinMale Pin
Current Rating (Amps)1 A1 A
Fastening TypePush-PullPush-Pull
FeaturesMounting FlangeMounting Flange
Insulation ColorBlackBlack
Insulation Height0.549 in0.549 in
Insulation Height13.94 mm13.94 mm
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeThrough HoleThrough Hole
Number of Positions1010 - 64
Number of Positions LoadedAllAll
Number of Rows22
Operating Temperature [Max]105 ░C105 ░C
Operating Temperature [Min]-55 °C-55 °C
Overall Contact Length16.23 mm16.23 mm
Overall Contact Length0.639 in0.639 in
Pitch - Mating0.1 in0.1 in
Pitch - Mating2.54 mm2.54 mm
Row Spacing - Mating [x]2.54 mm2.54 mm
Row Spacing - Mating [x]0.1 in0.1 in
ShroudingShrouded - 4 WallShrouded - 4 Wall
StyleBoard to Cable/WireBoard to Cable/Wire
TerminationSolderSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1170$ 1.01

102153 Series

CONN HEADER VERT 64POS 2.54MM

PartNumber of PositionsStyleRow Spacing - Mating [x]Row Spacing - Mating [x]Pitch - MatingPitch - MatingOperating Temperature [Max]Operating Temperature [Min]Overall Contact LengthOverall Contact LengthNumber of RowsFastening TypeCurrent Rating (Amps)Number of Positions LoadedContact TypeMaterial Flammability RatingInsulation ColorContact Finish - MatingMounting TypeFeaturesInsulation HeightInsulation HeightContact Length - Post [x]Contact Length - PostTerminationContact Length - MatingContact Length - Mating [x]Contact ShapeContact Finish Thickness - PostContact Finish Thickness - PostContact Finish - PostShroudingConnector TypeContact Finish Thickness - MatingContact Finish Thickness - Mating
TE Connectivity AMP Connectors
1-102153-2
64
Board to Cable/Wire
2.54 mm
0.1 in
0.1 in
2.54 mm
105 ░C
-55 °C
16.23 mm
0.639 in
2
Push-Pull
1 A
All
Male Pin
UL94 V-0
Black
Gold or Gold-Palladium
Through Hole
Mounting Flange
0.549 in
13.94 mm
0.11 in
2.79 mm
Solder
6.1 mm
0.24 in
Square
2.54 µm
100 µin
Tin-Lead
Shrouded - 4 Wall
Header
15 µin
0.38 µm
TE Connectivity AMP Connectors
1-102153-1
60
Board to Cable/Wire
2.54 mm
0.1 in
0.1 in
2.54 mm
105 ░C
-55 °C
16.23 mm
0.639 in
2
Push-Pull
1 A
All
Male Pin
UL94 V-0
Black
Gold or Gold-Palladium
Through Hole
Mounting Flange
0.549 in
13.94 mm
0.11 in
2.79 mm
Solder
6.1 mm
0.24 in
Square
2.54 µm
100 µin
Tin-Lead
Shrouded - 4 Wall
Header
15 µin
0.38 µm
TE Connectivity AMP Connectors
102153-7
30
Board to Cable/Wire
2.54 mm
0.1 in
0.1 in
2.54 mm
105 ░C
-55 °C
16.23 mm
0.639 in
2
Push-Pull
1 A
All
Male Pin
UL94 V-0
Black
Gold or Gold-Palladium
Through Hole
Mounting Flange
0.549 in
13.94 mm
0.11 in
2.79 mm
Solder
6.1 mm
0.24 in
Square
2.54 µm
100 µin
Tin-Lead
Shrouded - 4 Wall
Header
15 µin
0.38 µm
TE Connectivity AMP Connectors
102153-9
40
Board to Cable/Wire
2.54 mm
0.1 in
0.1 in
2.54 mm
105 ░C
-55 °C
16.23 mm
0.639 in
2
Push-Pull
1 A
All
Male Pin
UL94 V-0
Black
Gold or Gold-Palladium
Through Hole
Mounting Flange
0.549 in
13.94 mm
0.11 in
2.79 mm
Solder
6.1 mm
0.24 in
Square
2.54 µm
100 µin
Tin-Lead
Shrouded - 4 Wall
Header
15 µin
0.38 µm
TE Connectivity AMP Connectors
102153-1
10
Board to Cable/Wire
2.54 mm
0.1 in
0.1 in
2.54 mm
105 ░C
-55 °C
16.23 mm
0.639 in
2
Push-Pull
1 A
All
Male Pin
UL94 V-0
Black
Gold or Gold-Palladium
Through Hole
Mounting Flange
0.549 in
13.94 mm
0.11 in
2.79 mm
Solder
6.1 mm
0.24 in
Square
2.54 µm
100 µin
Tin-Lead
Shrouded - 4 Wall
Header
15 µin
0.38 µm

Description

General part information

102153 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)
