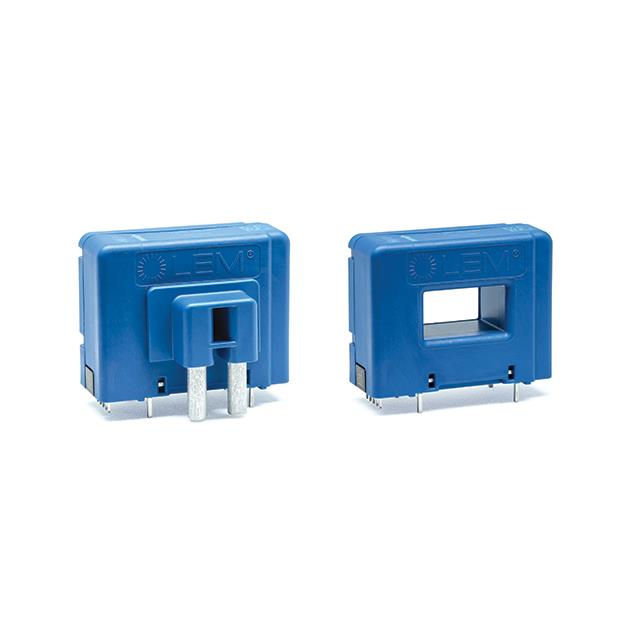

LZSR 150-TP
ActiveLEM USA Inc.
CLOSED-LOOP CURRENT SENSOR 150A
LZSR 150-TP
ActiveLEM USA Inc.
CLOSED-LOOP CURRENT SENSOR 150A
Description
General part information
LZSR 150-TP
Current Sensor 150A 1 Channel Closed Loop Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | LZSR 150-TP |
|---|---|
| Current - Sensing | 150 A |
| For Measuring | AC, DC |
| Linearity Tolerance | 0.15 % |
| Maximum Frequency | 200 kHz |
| Minimum Frequency | DC |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Voltage |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 4.167 mV/A |
| Sensor Type | Closed Loop |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 4.75 V |
