VM3SBQF3002L03
ActiveCIT Relay and Switch
SWITCH LIMIT SPST-NC 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
VM3SBQF3002L03
ActiveCIT Relay and Switch
SWITCH LIMIT SPST-NC 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VM3SBQF3002L03 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPST-NC |
| Differential Travel | 1.5 mm |
| Differential Travel | 0.06 " |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 180 gf |
| Operating Position | 14.9 mm |
| Operating Position | 0.587 in |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.039 in |
| Overtravel | 1 mm |
| Pretravel | 0.138 in |
| Pretravel | 3.5 mm |
| Release Force | 80 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 4.09 | |
Description
General part information
VM3SBQF3002L03

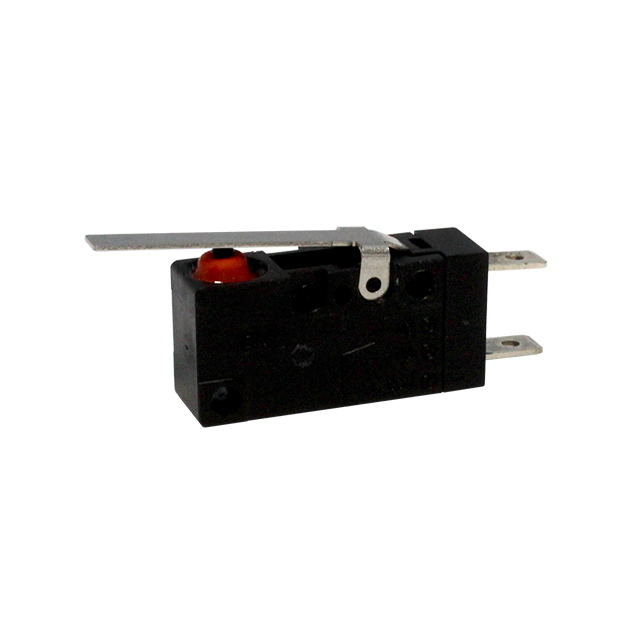

Switch SPST-NC Chassis Mount
Documents
Technical documentation and resources
No documents available
