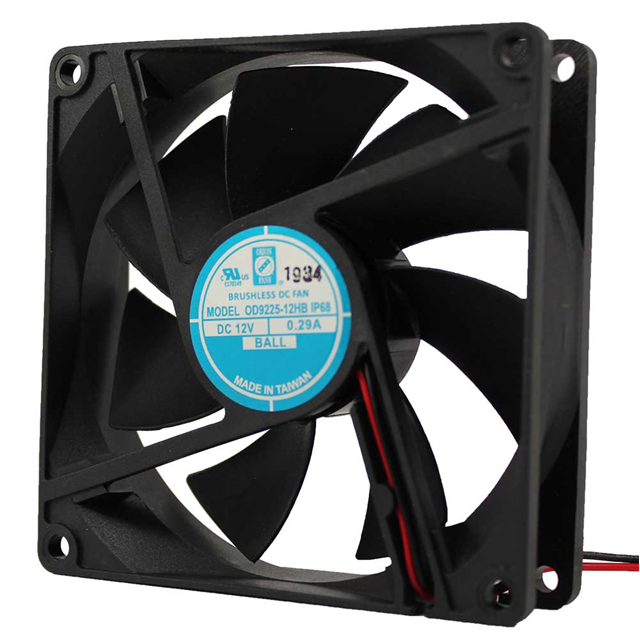

OD9225-12LBIP68

Active

Orion Fans

DC AXIAL FAN, 12 V, SQUARE, 92 MM, 25 MM, BALL BEARING, 25.1 CFM

Search across all available documentation for this part.

Active

Orion Fans

DC AXIAL FAN, 12 V, SQUARE, 92 MM, 25 MM, BALL BEARING, 25.1 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	OD9225-12LBIP68

Air Flow	25 CFM
Air Flow	0.7 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Features	Auto Restart
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	23 dB(A)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-15 °C
Operating Temperature [Min]	-15 °C
Power (Watts)	1.4 W
RPM	1800 RPM
Static Pressure	29.9 Pa
Static Pressure	0.12 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Width [y]	25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 14.51
Newark	Each	1	$ 22.44
		1000	$ 20.57

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 25.0 CFM (0.700mł/min) 2 Wire Leads
