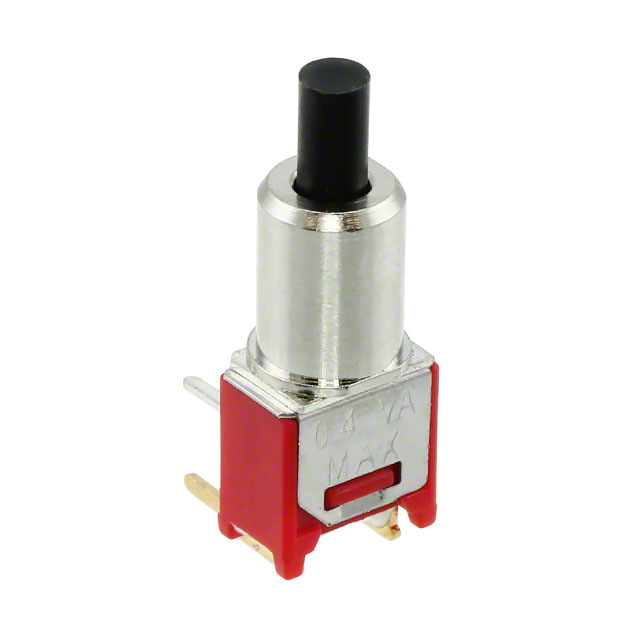

PMS9P1B08M6RE

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Actuator Type	Switch Function	Mounting Type	Actuator Marking	Current Rating (Amps)	Color - Actuator/Cap	Features	Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Termination Style	Panel Cutout Dimensions [diameter]
TE Connectivity Raychem Cable Protection PMS9P1B07M6RE	20 V	Round Plunger	Off-Mom	Through Hole Right Angle	No Marking	0.4 VA	Black	Sealed	Standard	20 V	-30 ░C	85 °C	SPST-NO	PC Pin
TE Connectivity Raychem Cable Protection PMS9P1B05M2QE	120 V	Round Plunger	Off-Mom	Panel Mount Rear	No Marking	3 A	Black	Sealed	Standard	28 V	-30 ░C	85 °C	SPST-NO	PC Pin	4.95 mm
TE Connectivity Raychem Cable Protection PMS9P1B08M6RE	20 V	Round Plunger	Off-Mom	Through Hole Right Angle	No Marking	0.4 VA	Black	Sealed	Standard	20 V	-30 ░C	85 °C	SPST-NO	PC Pin
TE Connectivity Raychem Cable Protection PMS9P1B09M6RE	20 V	Round Plunger	Off-Mom	Panel Mount Rear Right Angle	No Marking	0.4 VA	Black	Sealed	Standard	20 V	-30 ░C	85 °C	SPST-NO	PC Pin	0.25 in
TE Connectivity Raychem Cable Protection PMS9P1B09M2QE	120 V	Round Plunger	Off-Mom	Panel Mount Rear	No Marking	3 A	Black	Sealed	Standard	28 V	-30 ░C	85 °C	SPST-NO	PC Pin	0.25 in
TE Connectivity Raychem Cable Protection PMS9P1B10M2QE	120 V	Round Plunger	Off-Mom	Through Hole	No Marking	3 A	Black	Sealed	Standard	28 V	-30 ░C	85 °C	SPST-NO	PC Pin
TE Connectivity Raychem Cable Protection PMS9P1B08M2RE	20 V	Round Plunger	Off-Mom	Through Hole	No Marking	0.4 VA	Black	Sealed	Standard	20 V	-30 ░C	85 °C	SPST-NO	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole, Right Angle
