Description
General part information

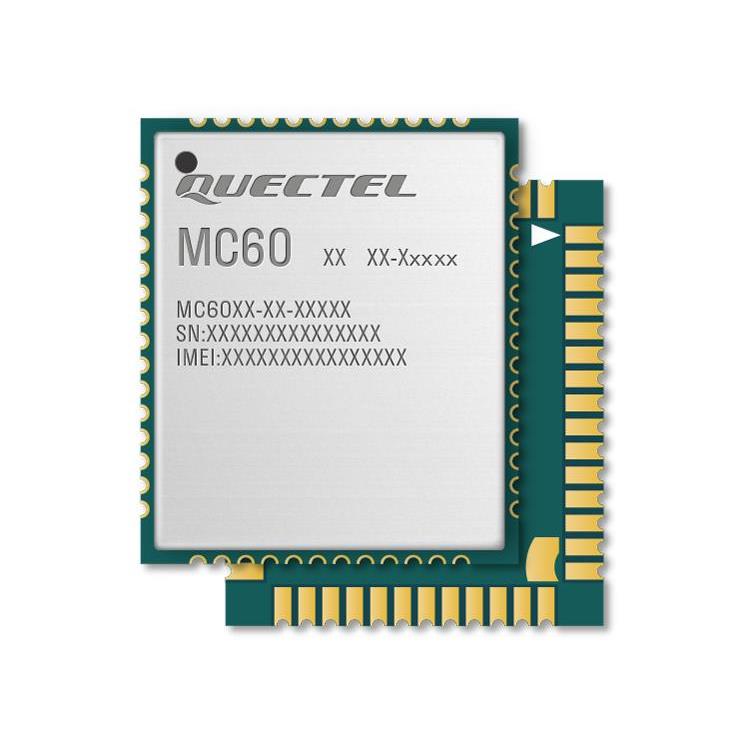

MC60CB-04-STD
Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS Transceiver Module 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MC60CB-04-STD |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving (Max) | 1.2 mA |
| Current - Receiving (Min) | 0.9 mA |
| Data Rate | 85.6 kbps |
| Frequency | 1.561GHz, 1.575GHz, 850MHz, 900MHz, 1.9GHz, 1.8GHz, 1.602GHz |
| Frequency | 1.561 GHz, 900 MHz, 850 MHz, 1.602 GHz, 1.9 GHz, 1.575 GHz, 1.8 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -35 °C |
| Package / Case | Module |
| Protocol | GNSS, Galileo, GPS, GPRS, BeiDou, GSM, GLONASS |
| RF Family/Standard | Navigation, Cellular |
| Sensitivity | -167 dBm |
| Serial Interfaces | ADC, PCM, GPIO, UART |
| Utilized IC / Part | MT2503DV/B |
| Voltage - Supply (Maximum) | 4.6 V |
| Voltage - Supply (Minimum) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
