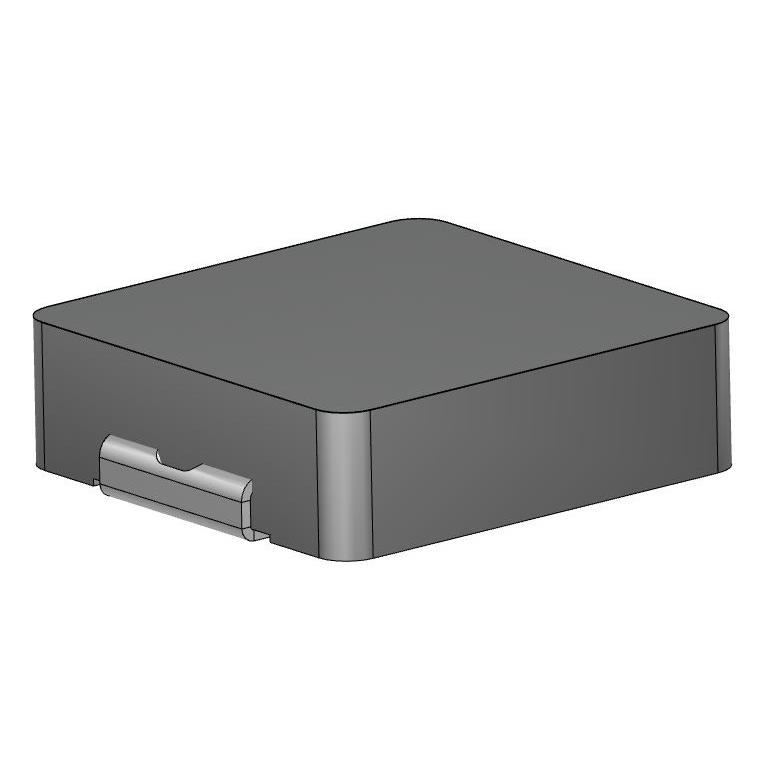

HBLE061T-100MS
ActiveDelta Electronics/Cyntec
IND SMD 10.0UH MOLDING CHOKE
HBLE061T-100MS
ActiveDelta Electronics/Cyntec
IND SMD 10.0UH MOLDING CHOKE
Description
General part information
HBLE061T-100MS
10 µH Unshielded Molded Inductor 1.4 A 310mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | HBLE061T-100MS |
|---|---|
| Current - Saturation (Isat) | 1.9 A |
| Current Rating | 1.4 A |
| DC Resistance (DCR) (Max) | 310 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.24 in |
| Tolerance | 20 % |
| Type | Molded |
