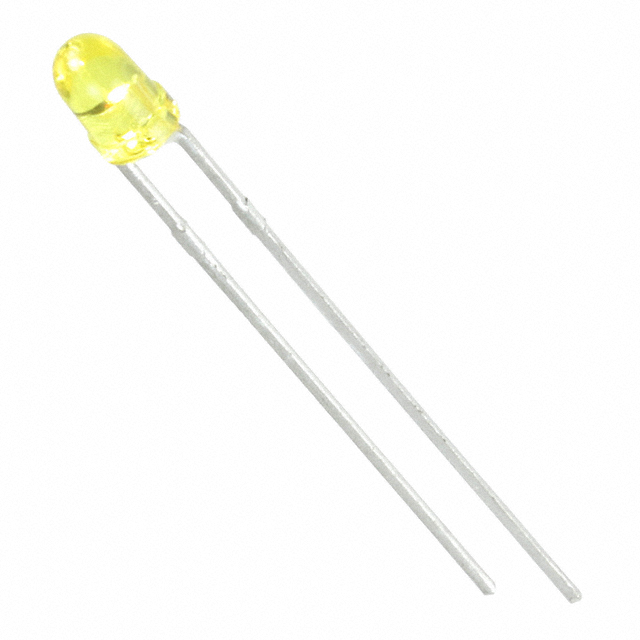

WP710A10SYT - Product Image

WP710A10SYT

Active
Kingbright

20MA 1200MCD YELLOW LENS 590NM YELLOW 2V PLUGIN,D=2.9MM LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
WP710A10SYT - Product Image

WP710A10SYT

Active
Kingbright

20MA 1200MCD YELLOW LENS 590NM YELLOW 2V PLUGIN,D=2.9MM LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationWP710A10SYT
ColorYellow
ConfigurationStandard
Current - Test20 mA
Height (Max) [Max] [z]5.9 mm
Lens ColorYellow
Lens Size3 mm
Lens SizeT-1
Lens StyleRound with Domed Top
Lens TransparencyClear
Millicandela Rating1200 mcd
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension [diameter]2.9 mm
Supplier Device PackageT-1
Viewing Angle34 °
Voltage - Forward (Vf) (Typ)2 V
Wavelength - Dominant590 nm
Wavelength - Peak590 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.41
10$ 0.25
100$ 0.14
1000$ 0.11
5000$ 0.09
10000$ 0.09
LCSCPiece 1$ 0.22
200$ 0.09
500$ 0.09
1000$ 0.08

Description

General part information

WP710A10SYT

Yellow 590nm LED Indication - Discrete 2V Radial

Documents

Technical documentation and resources

Datasheet

Datasheet
