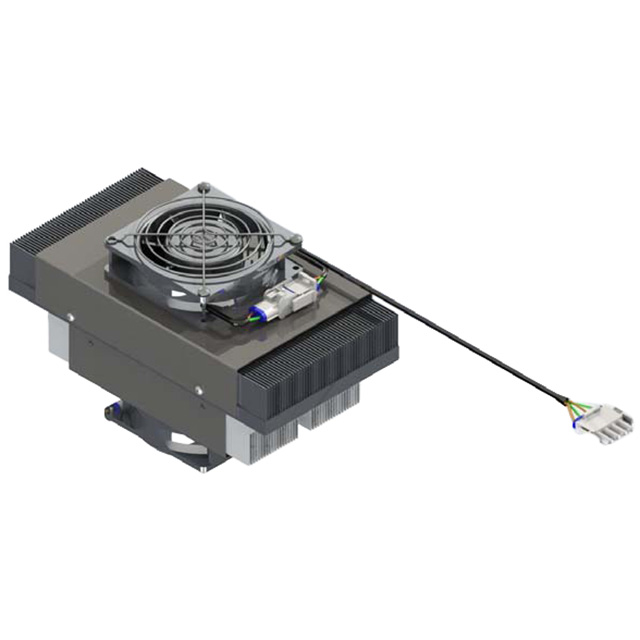

CTA230-0001-01

Active

Marlow Industries, Inc.

THERMOELECT ASSY AIR-AIR 72W

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

THERMOELECT ASSY AIR-AIR 72W

Technical Specifications

Parameters and characteristics commom to parts in this series

THERMOELECT ASSY AIR-AIR 72W

Part	Weight	Weight	Voltage	Dimensions - Overall [x]	Dimensions - Overall [y]	Heat Transfer Type	Power - Cooling	Operating Temperature [Min]	Operating Temperature [Max]	Fan Location	Current
Marlow Industries, Inc. CTA230-0001-03	2.2 kg	4.9 lbs	24 V	230 mm	120 mm	Air to Air	72 W	-10 °C	60 °C	Cold Side / Warm Side	3.7 A
Marlow Industries, Inc. CTA230-0001-01	2.2 kg	4.9 lbs	12 V	230 mm	120 mm	Air to Air	72 W	-10 °C	60 °C	Cold Side / Warm Side	7.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 497.98

General part information

Air to Air Thermoelectric Assembly 72 W
