9543 060100
ActiveBelden Inc.

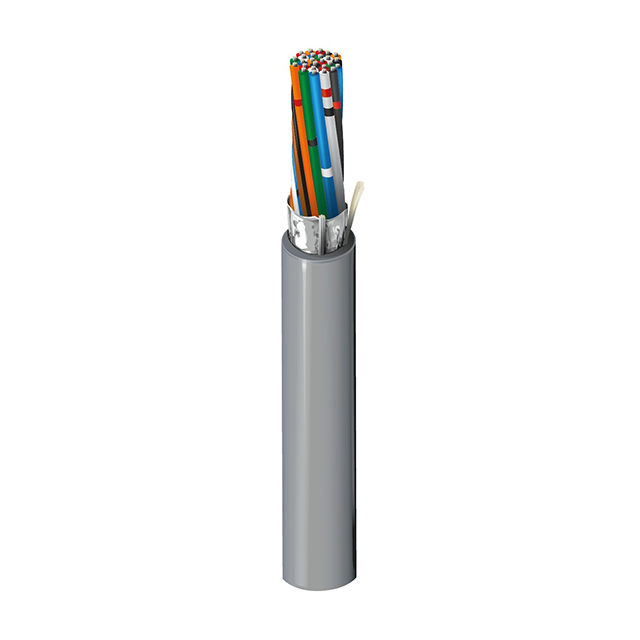

CABLE 25COND 24AWG CHRM SHD 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9543 060100
ActiveBelden Inc.
CABLE 25COND 24AWG CHRM SHD 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9543 060100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.339 in |
| Jacket (Insulation) Diameter [diameter] | 8.61 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Chrome |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 25 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Computer |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1317.59 | |
| 3 | $ 1218.95 | |||
| 5 | $ 1176.68 | |||
| 7 | $ 1148.49 | |||
Description
General part information
9543 Series
25 Conductor Multi-Conductor Cable Chrome 24 AWG Foil 100.0' (30.5m)
