8STV-03-006
ActiveTE Connectivity AMP Connectors

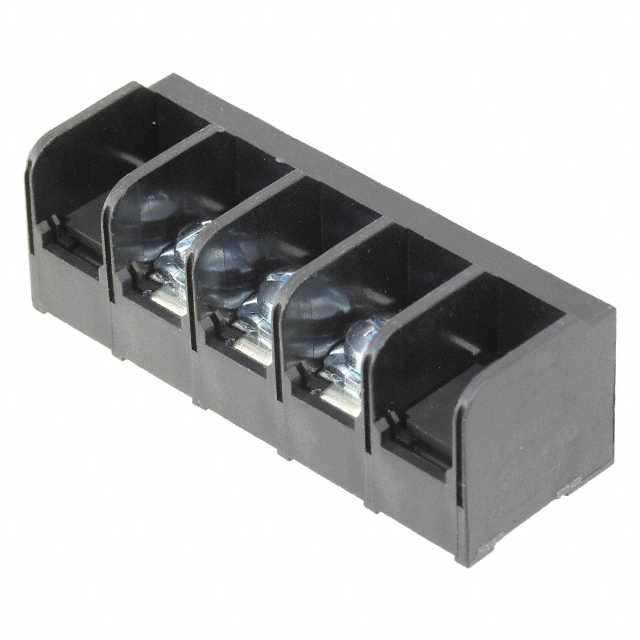

CONN BARRIER STRIP 3CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8STV-03-006
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 3CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8STV-03-006 | 8STV Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | Solder Turret | Solder Turret |
| Color | Black | Black |
| Current Rating (Amps) | 30 A | 30 A |
| Features | Flange | Flange |
| Material - Insulation | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 3 | 2 - 3 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 3 | 2 - 3 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Zinc | Zinc |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate |
| Voltage Rating | 600 V | 600 V |
| Wire Gauge [Max] | 18 AWG | 18 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
8STV Series
CONN BARRIER STRIP 3CIRC 0.438"
| Part | Voltage Rating | Wire Gauge [Min] | Wire Gauge [Max] | Top Termination | Material - Insulation | Bottom Termination | Pitch [x] | Pitch [x] | Number of Wire Entries | Operating Temperature [Min] | Operating Temperature [Max] | Terminal Screw Material | Material Flammability Rating | Barrier Type | Color | Number of Circuits | Mounting Type | Terminal Screw Finish | Current Rating (Amps) | Number of Rows | Terminal Block Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 8STV-03-006 | 600 V | 10 AWG | 18 AWG | Screws with Captive Plate | Thermoplastic | Solder Turret | 11.12 mm | 0.438 in | 3 | -40 °C | 120 °C | Steel | UL94 V-0 | 3 Wall (Tri) | Black | 3 | Chassis, Panel | Zinc | 30 A | 1 | Barrier Block | Flange |
TE Connectivity AMP Connectors 8STV-02-006 | 600 V | 10 AWG | 18 AWG | Screws with Captive Plate | Thermoplastic | Solder Turret | 11.12 mm | 0.438 in | 2 | -40 °C | 120 °C | Steel | UL94 V-0 | 3 Wall (Tri) | Black | 2 | Chassis, Panel | Zinc | 30 A | 1 | Barrier Block | Flange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.22 | |
| 10 | $ 1.98 | |||
| 25 | $ 1.97 | |||
| 50 | $ 1.95 | |||
| 110 | $ 1.78 | |||
Description
General part information
8STV Series
3 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
