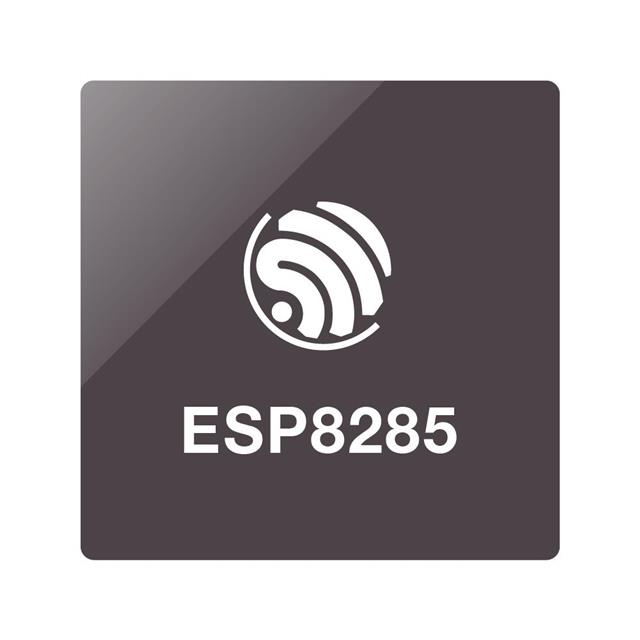

ESP8285H16
ActiveEspressif Systems
IC RF TXRX+MCU WIFI 32QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESP8285H16
ActiveEspressif Systems
IC RF TXRX+MCU WIFI 32QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ESP8285H16 | ESP8285 Series |
|---|---|---|
| Current - Receiving [Max] | 56 mA | 56 - 73 mA |
| Current - Receiving [Min] | 50 mA | 50 - 72 mA |
| Current - Transmitting [Max] | 170 mA | 170 - 197 mA |
| Current - Transmitting [Min] | 120 mA | 120 - 142 mA |
| Data Rate (Max) | - | 72.2 Mbps |
| Data Rate (Max) [Max] | 54 Mbps | 54 Mbps |
| Frequency | 2.4 GHz | 2.4 GHz |
| Frequency | - | 2.483 GHz |
| Frequency | - | 2.4 - 2.412 GHz |
| GPIO | 8 | 8 - 17 |
| Modulation | - | OFDM, 64QAM, DSSS, BPSK, CCK |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 - 105 ░C |
| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Power - Output | 20 dBm | 20 dBm |
| Protocol | 802.11b/g/n | 802.11b/g/n |
| RF Family/Standard | WiFi | WiFi, Cellular, Bluetooth |
| Sensitivity | -91 dBm | -97 - -91 dBm |
| Serial Interfaces | SPI, I2C, I2S, UART | SPI, I2C, I2S, UART, GPIO, ADC, PWM, SDIO |
| Supplier Device Package | 32-QFN (5x5) | 32-QFN (5x5) |
| Type | TxRx + MCU | TxRx + MCU |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
ESP8285 Series
IC RF TXRX+MCU WIFI 32QFN
| Part | Type | Power - Output | Package / Case | Mounting Type | GPIO | Current - Receiving [Min] | Current - Receiving [Max] | Supplier Device Package | Serial Interfaces | Current - Transmitting [Max] | Current - Transmitting [Min] | RF Family/Standard | Data Rate (Max) [Max] | Protocol | Sensitivity | Voltage - Supply [Min] | Voltage - Supply [Max] | Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Modulation | Data Rate (Max) | Frequency [Max] | Frequency [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Espressif Systems ESP8285H16 | TxRx + MCU | 20 dBm | 32-VFQFN Exposed Pad | Surface Mount | 8 | 50 mA | 56 mA | 32-QFN (5x5) | I2C, I2S, SPI, UART | 170 mA | 120 mA | WiFi | 54 Mbps | 802.11b/g/n | -91 dBm | 2.7 V | 3.6 V | 2.4 GHz | ||||||
Espressif Systems ESP8285H08 | TxRx + MCU | 20 dBm | 32-VFQFN Exposed Pad | Surface Mount | 17 | 72 mA | 73 mA | 32-QFN (5x5) | ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART | 197 mA | 142 mA | Bluetooth, Cellular, WiFi | 802.11b/g/n | -97 dBm | 2.7 V | 3.6 V | -40 °C | 105 ░C | 64QAM, BPSK, CCK, DSSS, OFDM | 72.2 Mbps | 2.483 GHz | 2.412 GHz | ||
Espressif Systems ESP8285N08 | TxRx + MCU | 20 dBm | 32-VFQFN Exposed Pad | Surface Mount | 17 | 72 mA | 73 mA | 32-QFN (5x5) | ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART | 197 mA | 142 mA | Bluetooth, Cellular, WiFi | 802.11b/g/n | -97 dBm | 2.7 V | 3.6 V | -40 °C | 85 °C | 64QAM, BPSK, CCK, DSSS, OFDM | 72.2 Mbps | 2.483 GHz | 2.4 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| Digi-Reel® | 1 | $ 1.05 | ||
| Tape & Reel (TR) | 5000 | $ 1.05 | ||
Description
General part information
ESP8285 Series
IC RF TxRx + MCU WiFi 802.11b/g/n 2.4GHz 32-VFQFN Exposed Pad
