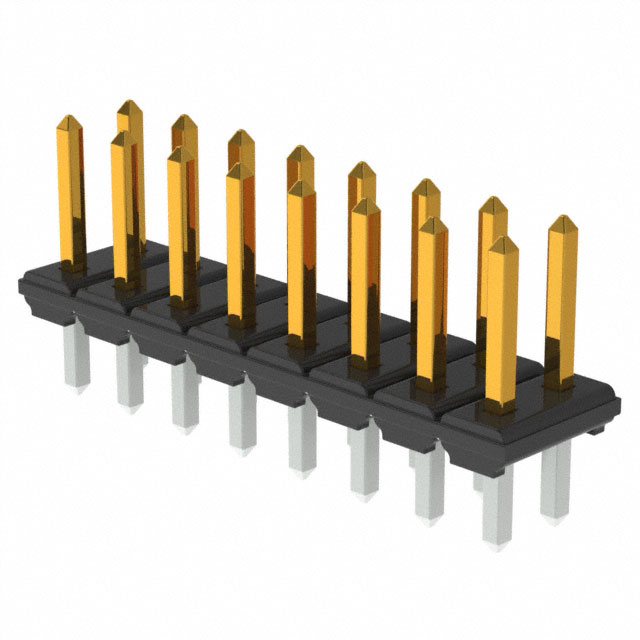

XJ8C-1611

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XJ8C-1611

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XJ8C-1611	XJ8C Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Length - Mating [x]	4.3 mm	4.3 mm
Contact Length - Mating [x]	0.169 in	0.169 in
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Brass, Nickel	Brass, Nickel
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	1.5 mm	1.5 mm
Insulation Height	0.059 "	0.059 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	2 - 4
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	8.6 mm	8.6 mm
Overall Contact Length	0.339 in	0.339 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

XJ8C Series

CONN HEADER VERT 16POS 2.54MM

Part	Number of Rows	Current Rating (Amps)	Number of Positions	Contact Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Connector Type	Voltage Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Material Flammability Rating	Shrouding	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Finish - Mating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Fastening Type	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions
Omron Electronics Inc-EMC Div XJ8C-1611	2	2 A	16	Male Pin	Board to Board, Cable	105 ░C	-55 °C	Through Hole	0.11 in	2.79 mm	Header	300 VDC	4.3 mm	0.169 in	Solder	UL94 V-0	Unshrouded	1.5 mm	0.059 "	0.1 in	2.54 mm	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS), Glass Filled	Gold	All	8.6 mm	0.339 in	Push-Pull	Black	Brass, Nickel	0.15 µm	5.9 µin	Square
Omron Electronics Inc-EMC Div XJ8C-0211	2	2 A		Male Pin	Board to Board, Cable	105 ░C	-55 °C	Through Hole	0.11 in	2.79 mm	Header	300 VDC	4.3 mm	0.169 in	Solder	UL94 V-0	Unshrouded	1.5 mm	0.059 "			2.54 mm	0.1 in	Polyphenylene Sulfide (PPS), Glass Filled	Gold	All	8.6 mm	0.339 in	Push-Pull	Black	Brass, Nickel	0.15 µm	5.9 µin	Square	2
Omron Electronics Inc-EMC Div XJ8C-0411	2	2 A		Male Pin	Board to Board, Cable	105 ░C	-55 °C	Through Hole	0.11 in	2.79 mm	Header	300 VDC	4.3 mm	0.169 in	Solder	UL94 V-0	Unshrouded	1.5 mm	0.059 "	0.1 in	2.54 mm	2.54 mm	0.1 in	Polyphenylene Sulfide (PPS), Glass Filled	Gold	All	8.6 mm	0.339 in	Push-Pull	Black	Brass, Nickel	0.15 µm	5.9 µin	Square	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.96
		10	$ 1.78
		300	$ 1.38
