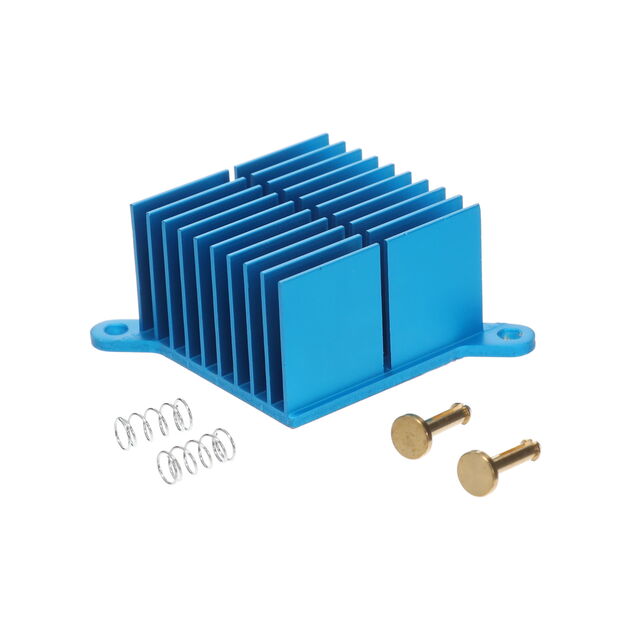

ATS-09D-184-C2-R0
ActiveAdvanced Thermal Solutions Inc.
HEATSINK 40X40X25MM R-TAB T766
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-09D-184-C2-R0 |
|---|---|
| Attachment Method | Push Pin |
| Fin Height | 0.984 in |
| Fin Height | 25 mm |
| Material | Aluminum |
| Material Finish | Blue Anodized |
| Package Cooled | ASIC, BGA, LGA, CPU |
| Shape | Square, Fins |
| Type | Top Mount |
| Width [x] | 1.575 in |
| Width [x] | 40 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.45 | |
| 10 | $ 4.33 | |||
| 25 | $ 4.24 | |||
Description
General part information
ATS-09D-184-C2-R0
Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
