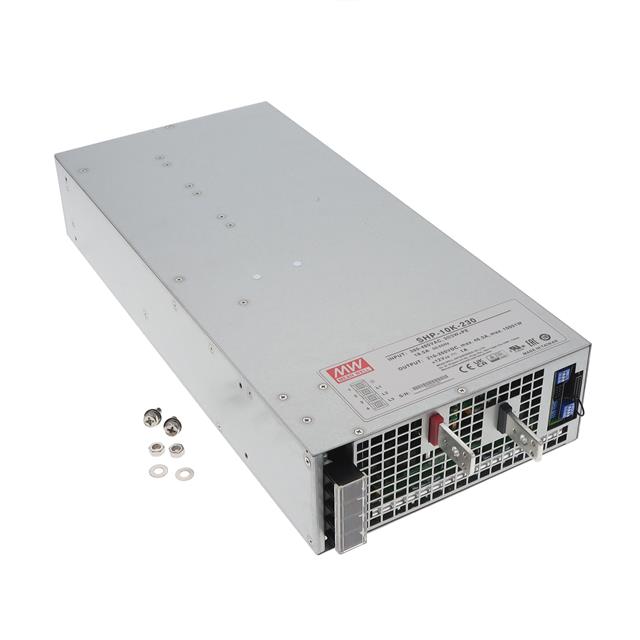

SHP-10K-230
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 230V 10.005KW
SHP-10K-230
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 230V 10.005KW
Description
General part information
SHP-10K-230
Enclosed AC DC Converters 1 Output 230V 340 ~ 530 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SHP-10K-230 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, EAC, CB, UKCA, TUV, CE |
| Current - Output 1 | 43.5 A |
| Efficiency | 96.5 % |
| Features | Remote On/Off, PFC, Adjustable Output, Load Sharing |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 10.005 kW |
| Size / Dimension Height | 3.29 in |
| Size / Dimension Length | 17 in |
| Size / Dimension Width | 8.31 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 530 VAC |
| Voltage - Input (AC) Minimum | 340 VAC |
| Voltage - Isolation | 3750 VDC |
| Voltage - Output 1 | 230 V |
