MAXM17623EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated

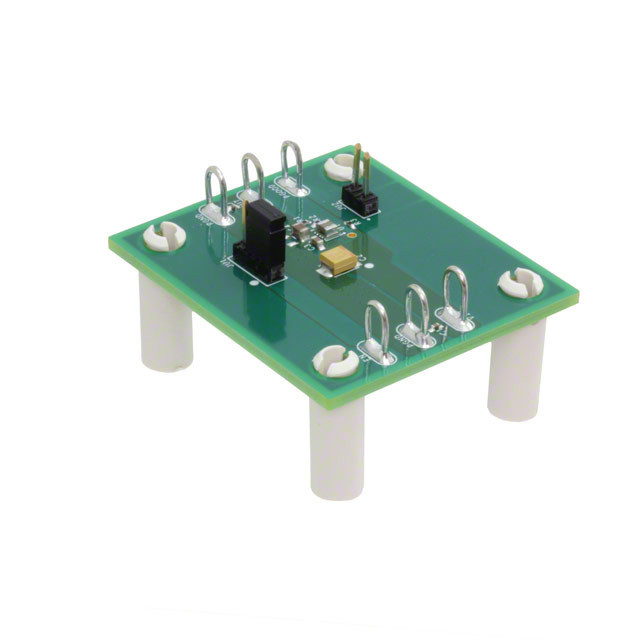

EVAL BOARD FOR MAXM17623
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMAXM17623, 24 Datasheet
MAXM17623EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAXM17623
Deep-Dive with AI
DocumentsMAXM17623, 24 Datasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17623EVKIT# | MAXM17623 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 1 A | 1 A |
| Frequency - Switching | 2 MHz | 2 MHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 10-SMD Module |
| Regulator Topology | Buck | Buck |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 2.6 |
| Supplier Device Package | - | 10-eMGA |
| Supplier Device Package | - | 2.1 |
| Utilized IC / Part | MAXM17623 | MAXM17623 |
| Voltage - Input (Max) | - | 5.5 V |
| Voltage - Input (Min) | - | 2.9 V |
| Voltage - Output | 1.5 V | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 34.01 | |
MAXM17623 Series
EVAL BOARD FOR MAXM17623
| Part | Current - Output | Voltage - Output | Outputs and Type | Outputs and Type | Frequency - Switching | Main Purpose | Regulator Topology | Utilized IC / Part | Supplied Contents | Board Type | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Package / Case | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17623EVKIT# | 1 A | 1.5 V | Non-Isolated | 1 | 2 MHz | DC/DC, Step Down | Buck | MAXM17623 | Board(s) | Fully Populated | |||||||||
Analog Devices Inc./Maxim Integrated MAXM17623AMB+T | 2.6 | 10-eMGA | 2.1 | 10-SMD Module | 2.9 V | 5.5 V | 125 °C | -40 °C | Surface Mount | ||||||||||
Analog Devices Inc./Maxim Integrated MAXM17623AMB+ | 2.6 | 10-eMGA | 2.1 | 10-SMD Module | 2.9 V | 5.5 V | 125 °C | -40 °C | Surface Mount | ||||||||||
Analog Devices Inc./Maxim Integrated MAXM17623EVKITE# | 1 A | 1.5 V | Non-Isolated | 1 | 2 MHz | DC/DC, Step Down | Buck | MAXM17623 | Board(s) | Fully Populated |
Description
General part information
MAXM17623 Series
MAXM17623 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
