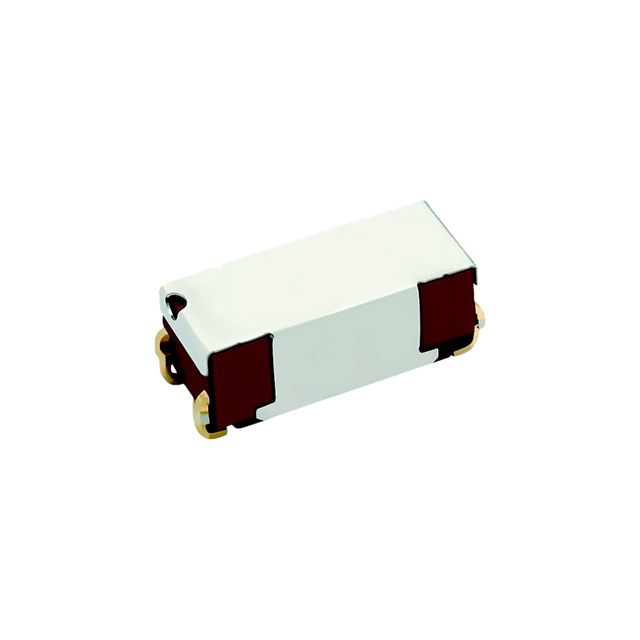

9913-05-20
ActiveCoto Technology
RELAY REED SPST-NO 250MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9913-05-20
ActiveCoto Technology
RELAY REED SPST-NO 250MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9913-05-20 |
|---|---|
| Coil Resistance | 200 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 250 mA |
| Features | EMI Shielded |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 0.25 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.05 ms |
| Switching Voltage | 100 VAC, 100 VDC |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.06 | |
| 10 | $ 9.43 | |||
| 25 | $ 8.38 | |||
| 50 | $ 7.96 | |||
| 125 | $ 7.54 | |||
| 250 | $ 6.71 | |||
| 500 | $ 6.29 | |||
| 1000 | $ 5.87 | |||
Description
General part information
9913 Series
RELAY REED SPST-NO 250MA 5V
