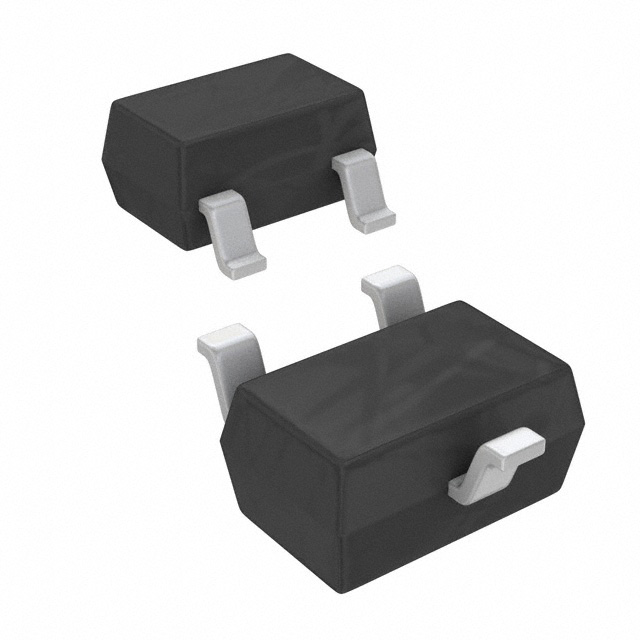

BAT30SWFILM
ActiveSMALL SIGNAL SCHOTTKY DIODE, DUAL SERIES, 30 V, 300 MA, 580 MV, 1 A, 150 °C
Deep-Dive with AI
Search across all available documentation for this part.
BAT30SWFILM
ActiveSMALL SIGNAL SCHOTTKY DIODE, DUAL SERIES, 30 V, 300 MA, 580 MV, 1 A, 150 °C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BAT30SWFILM | BAT30 Series |
|---|---|---|
| - | - | |
| Capacitance @ Vr, F | - | 22 pF |
| Current - Average Rectified (Io) | - | 300 mA |
| Current - Average Rectified (Io) (per Diode) | 300 mA | 300 mA |
| Current - Reverse Leakage @ Vr | 5 µA | 5 - 50 µA |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection, 2 Independent, 1 Pair Common Cathode, 1 Pair Common Anode |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction | 150 °C | 150 °C |
| Operating Temperature - Junction | - | 85 °C |
| Operating Temperature - Junction | - | -30 °C |
| Package / Case | SC-70, SOT-323 | SOT-23-3, TO-236-3, SC-59, SC-70, SOT-323, 0201, SOT-666, SOT-563, SOD-923 |
| Package / Case | - | 0603 Metric |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | SOT-323 | SOT-23-3, SOT-323, 0201, SOT-666, SOD-923 |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 30 V | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 530 mV | 310 - 530 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| Tape & Reel (TR) | 3000 | $ 0.06 | ||
| 6000 | $ 0.06 | |||
| 9000 | $ 0.05 | |||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.24 | |
| 10 | $ 0.15 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
BAT30 Series
SMALL SIGNAL SCHOTTKY DIODE, SINGLE, 30 V, 300 MA, 580 MV, 1 A, 150 °C, SOD-523, 2 PINS
| Part | Supplier Device Package | Operating Temperature - Junction | Current - Average Rectified (Io) (per Diode) | Package / Case | Mounting Type | Diode Configuration | Technology | Speed | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) [Max] | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Package / Case | Current - Average Rectified (Io) | Capacitance @ Vr, F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics BAT30KFILM | ||||||||||||||||
STMicroelectronics BAT30SWFILM | ||||||||||||||||
STMicroelectronics BAT30KFILM | ||||||||||||||||
STMicroelectronics BAT30SFILM | SOT-23-3 | 150 °C | 300 mA | SC-59, SOT-23-3, TO-236-3 | Surface Mount | 1 Pair Series Connection | Schottky | 200 mA, 500 ns | 530 mV | 5 µA | 30 V | |||||
STMicroelectronics BAT30SWFILM | SOT-323 | 150 °C | 300 mA | SC-70, SOT-323 | Surface Mount | 1 Pair Series Connection | Schottky | 200 mA, 500 ns | 530 mV | 5 µA | 30 V | |||||
STMicroelectronics BAT30F4 | ||||||||||||||||
STMicroelectronics BAT30CWFILM | ||||||||||||||||
STMicroelectronics BAT30F4 | 0201 | 0201 | Surface Mount | Schottky | 200 mA, 500 ns | 310 mV | 50 çA | 30 V | 85 °C | -30 °C | 0603 Metric | 300 mA | ||||
STMicroelectronics BAT30KFILM | ||||||||||||||||
STMicroelectronics BAT30-07P6FILM | SOT-666 | 150 °C | 300 mA | SOT-563, SOT-666 | Surface Mount | 2 Independent | Schottky | 200 mA, 500 ns | 530 mV | 5 µA | 30 V | |||||
STMicroelectronics BAT30LFILM | SOD-923 | 150 °C | SOD-923 | Surface Mount | Schottky | 200 mA, 500 ns | 530 mV | 5 µA | 30 V | 300 mA | 22 pF | |||||
STMicroelectronics BAT30F4 | ||||||||||||||||
STMicroelectronics BAT30CWFILM | SOT-323 | 150 °C | 300 mA | SC-70, SOT-323 | Surface Mount | 1 Pair Common Cathode | Schottky | 200 mA, 500 ns | 530 mV | 5 µA | 30 V | |||||
STMicroelectronics BAT30AFILM | SOT-23-3 | 150 °C | 300 mA | SC-59, SOT-23-3, TO-236-3 | Surface Mount | 1 Pair Common Anode | Schottky | 200 mA, 500 ns | 530 mV | 5 µA | 30 V | |||||
STMicroelectronics BAT30F4 | ||||||||||||||||
STMicroelectronics BAT30-09P6FILM | SOT-666 | 150 °C | 300 mA | SOT-563, SOT-666 | Surface Mount | 2 Independent | Schottky | 200 mA, 500 ns | 530 mV | 5 µA | 30 V | |||||
STMicroelectronics BAT30KFILM | ||||||||||||||||
STMicroelectronics BAT30SWFILM |
Description
General part information
BAT30 Series
The BAT30SWFILM is a surface mount Small Signal Schottky Diode featuring extremely fast switching, low forward and reverse recovery times. This diode is specially suited for switching mode applications needing low forward voltage drop diodes.
