BU-102B-2

Active

MUELLER ELECTRIC

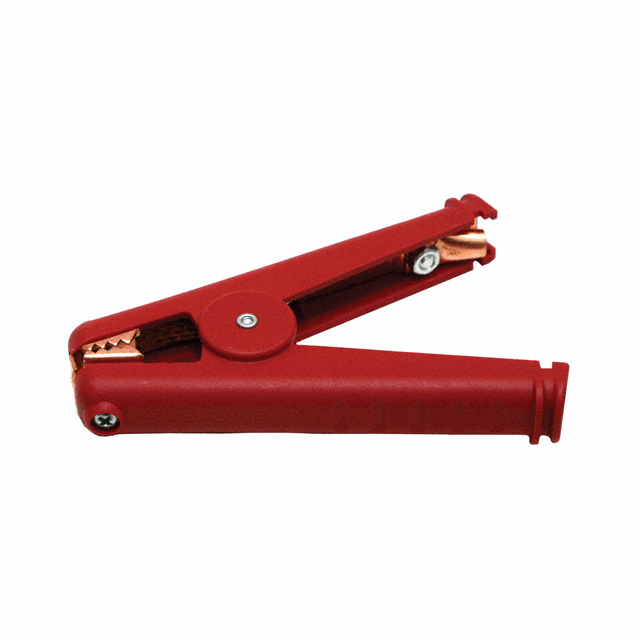

BATTERY CLIP, 300A, 41MM, RED ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

BATTERY CLIP, 300A, 41MM, RED ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BU-102B-2	BU-102B Series

Color	Red	Red, Black
Current Rating (Amps)	300 A	300 A
Insulation	Insulated	Insulated
Jaw Opening	41 mm	41 mm
Jaw Opening	1.614 in	1.614 in
Length [x]	165.1 mm	165.1 mm
Length [x]	6.5 in	6.5 in
Material	Copper	Copper
Material - Insulation	Nylon	Nylon
Plating	Zinc	Zinc
Quantity	1 Box	1 Box
Termination	Solder	Solder
Type	Battery Terminal Clamp	Battery Terminal Clamp, Kelvin

BATTERY CLIP, 300A, 41MM, RED ROHS COMPLIANT: YES

Part	Plating	Type	Color	Jaw Opening	Jaw Opening	Quantity	Current Rating (Amps)	Insulation	Material - Insulation	Length [x]	Length [x]	Material	Termination
MUELLER ELECTRIC BU-102B-2	Zinc	Battery Terminal Clamp	Red	41 mm	1.614 in	1 Box	300 A	Insulated	Nylon	165.1 mm	6.5 in	Copper	Solder
MUELLER ELECTRIC BU-102BK-0		Kelvin	Black	41 mm	1.614 in	1 Box	300 A	Insulated	Nylon	165.1 mm	6.5 in	Copper	Solder
MUELLER ELECTRIC BU-102BK-2		Kelvin	Red	41 mm	1.614 in	1 Box	300 A	Insulated	Nylon	165.1 mm	6.5 in	Copper	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

300 A Insulated Battery Terminal Clamp Test Clip Copper 1.614" (41.00mm)
