PE3074LF-24
ActivePasternack

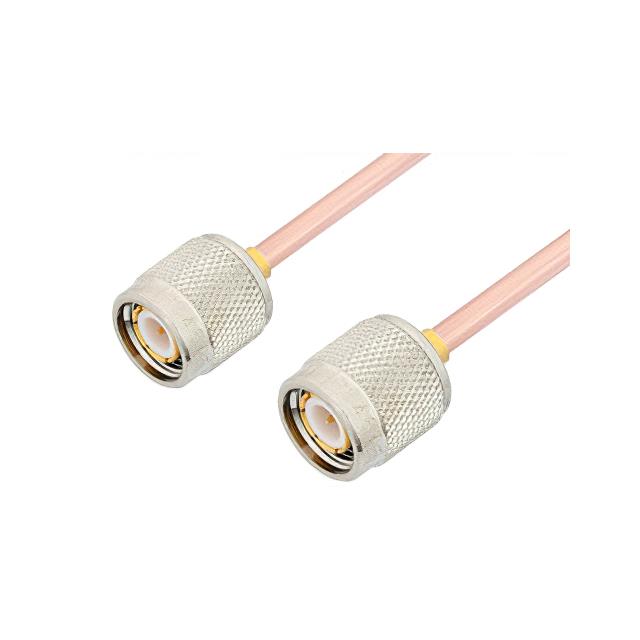

TNC MALE TO TNC MALE CABLE 24 IN
PE3074LF-24
ActivePasternack
TNC MALE TO TNC MALE CABLE 24 IN
Description
General part information
PE3074LF-24
Cable Assembly Coaxial TNC to TNC RG-402 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3074LF-24 |
|---|---|
| 1st Connector | TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 402 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | TNC |
