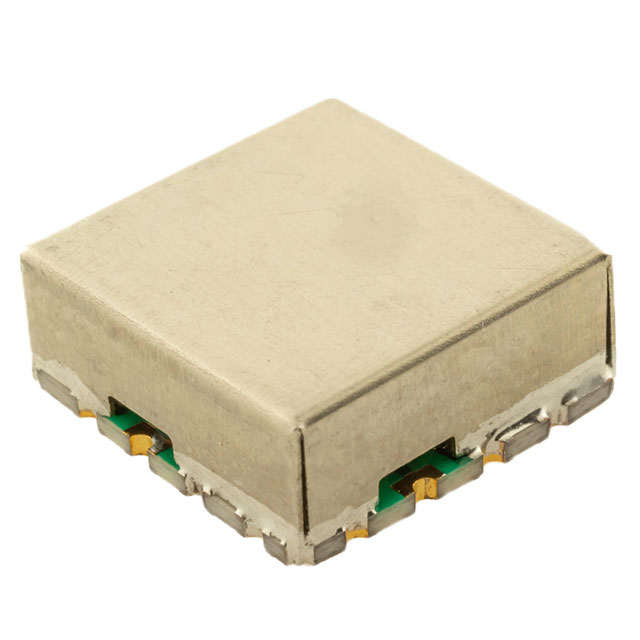

RQRA-1900-2500
ActiveRaltron Electronics
VCO 1900MHZ/2500MHZ12.7X12.7MM
RQRA-1900-2500
ActiveRaltron Electronics
VCO 1900MHZ/2500MHZ12.7X12.7MM
Description
General part information
RQRA-1900-2500
2.2GHz Center Frequency 0 V ~ 25 V Voltage Controlled Oscillator 3 dBm -15 2nd Harmonic Typ (dBc)
Technical Specifications
Parameters and characteristics for this part
| Specification | RQRA-1900-2500 |
|---|---|
| 2nd Harmonic (Typ) (dBc) | -15 dBc |
| Frequency - Center | 2.2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 1900 MHz |
| Icc Max | 30 mA |
| Maximum Tuning Voltage (VDC) | 25 V |
| Minimum Tuning Voltage (VDC) | 0 V |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 16-QFN, Variant |
| Power (dBm) (Nominal) | 3 dBm |
| Pushing (MHz/V) | 5 MHz/V |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.5 in |
| Voltage - Supply | 5 VDC |
