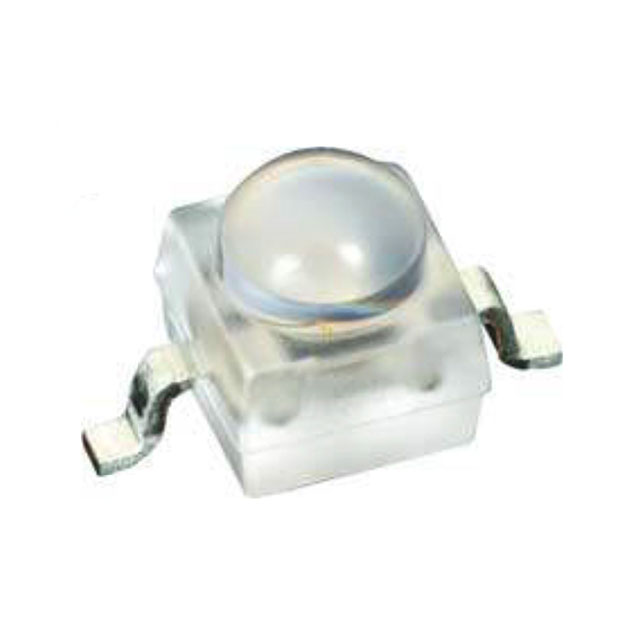

VSMY2893GX01
ActiveVishay Semiconductor Opto Division
HIGH SPEED INFRARED EMITTING DIO
VSMY2893GX01
ActiveVishay Semiconductor Opto Division
HIGH SPEED INFRARED EMITTING DIO
Description
General part information
VSMY2893GX01
Infrared (IR) Emitter 890nm (870nm ~ 910nm) 1.6V 100mA 27mW/sr @ 100mA 56° 2-SMD, Gull Wing
Technical Specifications
Parameters and characteristics for this part
| Specification | VSMY2893GX01 |
|---|---|
| Current - DC Forward (If) (Max) | 100 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | Gull Wing, 2-SMD |
| Qualification | AEC-Q101 |
| Radiant Intensity (Ie) Min | 27 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 56 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 890 nm |
| Wavelength (Maximum) | 910 nm |
| Wavelength (Minimum) | 870 nm |
| Wavelength (Nominal) | 890 nm |
