WL1608FSR27MTFM01
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 270NH 750MA 160MOHM SM
WL1608FSR27MTFM01
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 270NH 750MA 160MOHM SM
Description
General part information
WL1608FSR27MTFM01

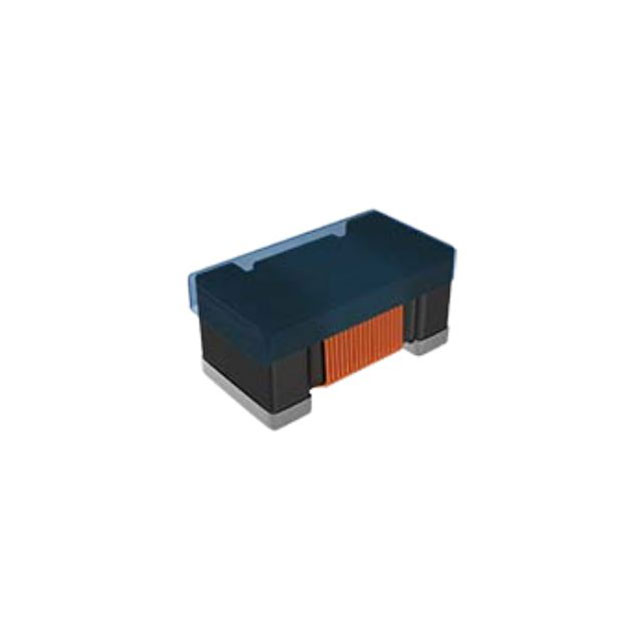

270 nH Unshielded Drum Core, Wirewound Inductor 750 mA 160mOhm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | WL1608FSR27MTFM01 |
|---|---|
| Current Rating | 0.75 A |
| DC Resistance (DCR) (Max) | 160 mOhm |
| Frequency - Self Resonant | 660 MHz |
| Height - Seated (Max) | 0.039 in |
| Inductance | 270 nH |
| Inductance Frequency - Test | 10 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.067 in |
| Size / Dimension Width | 0.037 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
