Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-IHM04A1 | X-NUCLEO-IHM04A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Motor Controller/Driver | Motor Controller/Driver |
| Platform | Nucleo | Nucleo |
| Type | Power Management | Power Management |
| Utilized IC / Part | L6206 | L6206 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.30 | |
X-NUCLEO-IHM04A1 Series

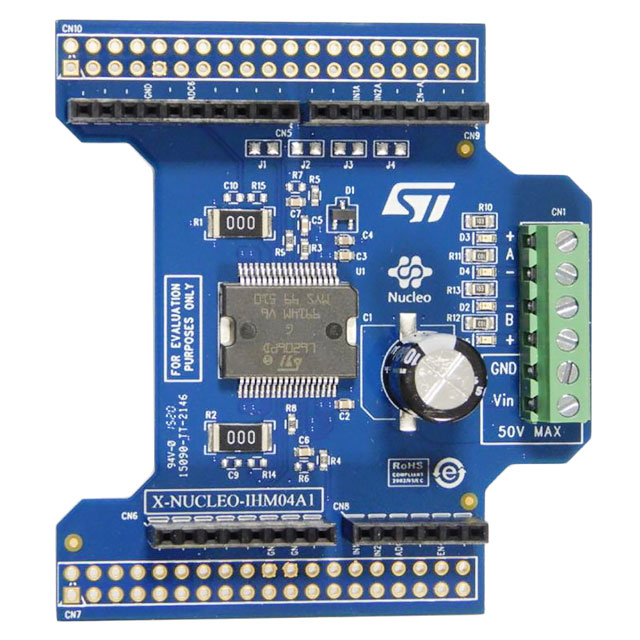

Dual brush DC motor driver expansion board based on L6206 for STM32 Nucleo
| Part | Platform | Type | Contents | Function | Utilized IC / Part |
|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-IHM04A1 | Nucleo | Power Management | Board(s) | Motor Controller/Driver | L6206 |
STMicroelectronics X-NUCLEO-IHM04A1 | |||||
STMicroelectronics X-NUCLEO-IHM04A1 |
Description
General part information
X-NUCLEO-IHM04A1 Series
The X-NUCLEO-IHM04A1 is a dual brush DC motor drive expansion board based on the L6206 (DMOS dual full bridge driver) to drive dual bipolar DC or quad unipolar DC motors. It provides an affordable and easy-to-use solution for driving DC motors in your STM32 Nucleo project. The X-NUCLEO-IHM04A1 is compatible with the Arduino UNO R3 connector, and supports the addition of other expansion boards with a single STM32 Nucleo board. The user can also mount the ST Morpho connector.
