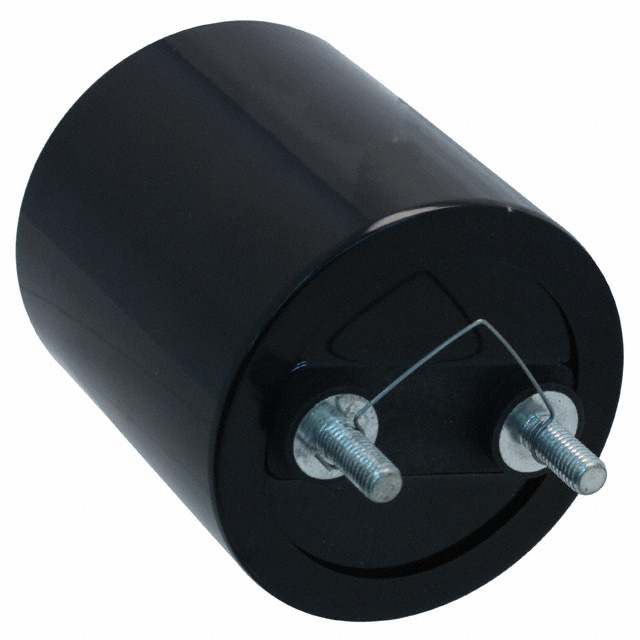

Specification	947C231K102CAMS

Applications	DC Filtering, DC Link
Capacitance	230 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	2.6 mOhm
Features	Low ESR, Long Life
Height - Seated (Max)	3.898 in
Lead Spacing	1.772 in
Mounting Type	Chassis, Stud Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Size / Dimension Diameter	3.543 in
Termination	Threaded, Male
Tolerance	10 %
Voltage Rating - AC	230 V
Voltage Rating - DC	1 kV
