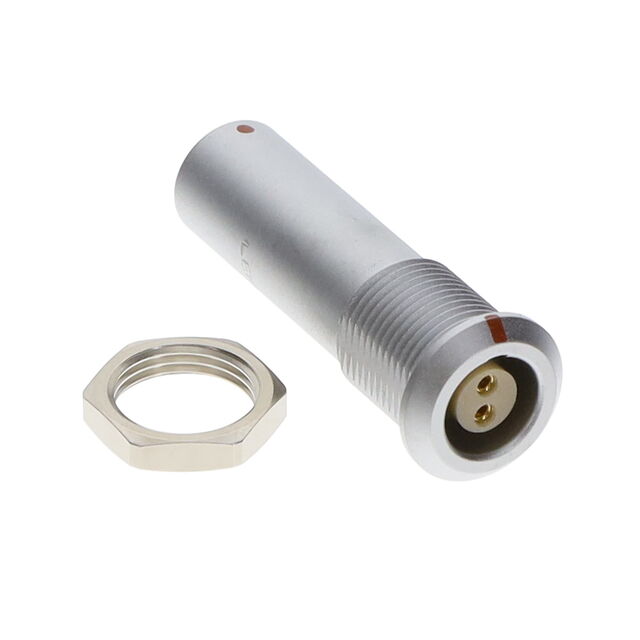

RGG.0B.302.CLM
ActiveLEMO
CONN ADAPTER 2P-2P F-F PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RGG.0B.302.CLM
ActiveLEMO
CONN ADAPTER 2P-2P F-F PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RGG.0B.302.CLM | RGG.0B Series |
|---|---|---|
| Connector Style | Standard | Standard |
| Convert From (Adapter End) | Female Sockets | Female Sockets |
| Convert To (Adapter End) | Female Sockets | Female Sockets |
| Current Rating (Amps) | 10 A | 8 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Mounting Hardware | Mounting Hardware |
| Housing Color | Silver | Silver |
| Housing Finish | Chrome | Chrome |
| Housing Material | Brass | Brass |
| Includes | 1 Adapter, 1 Nut | 1 Adapter, 1 Nut |
| Ingress Protection | IP50 | IP50 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions (Convert From) | 2 | 2 - 3 |
| Number of Positions (Convert To) | 2 | 2 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation (Convert From) | G | G |
| Orientation (Convert To) | G | G |
| Shell Size - Insert (Convert From) | 302 | 302 - 303 |
| Shell Size - Insert (Convert To) [custom] | 302 | 302 - 303 |
| Shielding | Shielded | Shielded |
RGG.0B Series
CONN ADAPTER 3P-3P F-F PNL MNT
| Part | Housing Material | Convert From (Adapter End) | Shell Size - Insert (Convert From) | Shell Size - Insert (Convert To) [custom] | Number of Positions (Convert From) | Shielding | Current Rating (Amps) | Orientation (Convert To) | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Fastening Type | Connector Style | Mounting Feature | Features | Housing Finish | Ingress Protection | Housing Color | Convert To (Adapter End) | Orientation (Convert From) | Number of Positions (Convert To) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO RGG.0B.303.CLM | Brass | Female Sockets | 303 | 303 | 3 | Shielded | 8 A | G | -55 °C | 250 °C | 1 Adapter, 1 Nut | Push-Pull | Standard | Bulkhead - Rear Side Nut | Mounting Hardware | Chrome | IP50 | Silver | Female Sockets | G | |
LEMO RGG.0B.302.CLM | Brass | Female Sockets | 302 | 302 | 2 | Shielded | 10 A | G | -55 °C | 250 °C | 1 Adapter, 1 Nut | Push-Pull | Standard | Bulkhead - Rear Side Nut | Mounting Hardware | Chrome | IP50 | Silver | Female Sockets | G | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.39 | |
Description
General part information
RGG.0B Series
Circular Connector Standard 2/2 Female Sockets/Female Sockets Panel Mount
