LT20-100J-RC
ActiveAllied Components International
10UH +/-5% L.P. FERRITE CHIP
LT20-100J-RC
ActiveAllied Components International
10UH +/-5% L.P. FERRITE CHIP
Description
General part information
LT20-100J-RC

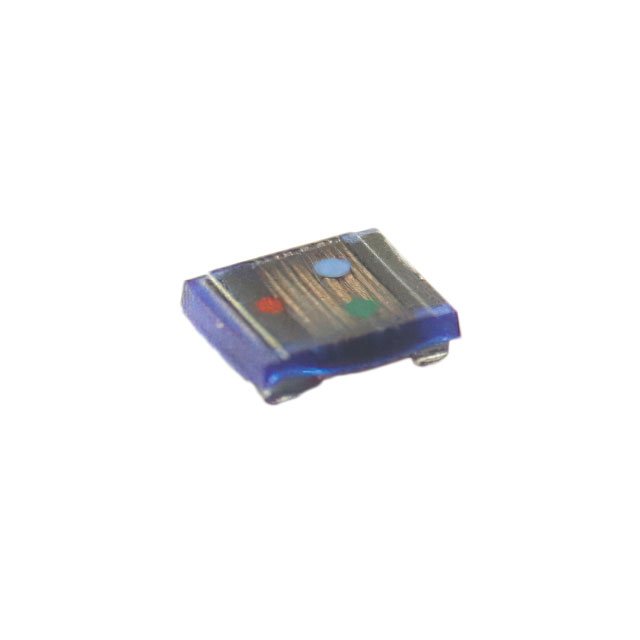

10 µH Unshielded Wirewound Inductor 2.90Ohm Max 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LT20-100J-RC |
|---|---|
| Current - Saturation (Isat) | 0.61 mA |
| DC Resistance (DCR) (Max) | 2.9 Ohm |
| Frequency - Self Resonant | 85 MHz |
| Height - Seated (Max) | 0.041 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 1210 (3225 Metric) |
| Package Name | 1210 |
| Q | 16 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.148 in |
| Size / Dimension Width | 0.122 in |
| Tolerance | 5 % |
| Type | Wirewound |
